Civilization101Blueprint

Fibre to cloth

Cloth is a chain of slow jobs — growing, retting, spinning, weaving, finishing — and for all of history the slowest link was spinning. A weaver needed several spinners working full time to keep one loom supplied.

Home: Fibres, textiles and leather, Level 0 · Triage, level 1 of 2 in its track. Serves 3 steps across 2 subjects.

Clothing is a survival technology before it is anything else, and making it from nothing is one of the largest labour costs a pre-industrial group carries. Before spinning machines, it took several spinners — commonly reckoned at three to eight — to supply one weaver with yarn. That ratio is why spinning was continuous background work, done walking, talking and minding children, and why the spinning jenny and the water frame were among the first machines of the industrial revolution.

The chain has five links, and each has a number that decides it:

  • Fibre — a plant stem (flax, hemp, nettle), a seed hair (cotton) or an animal coat (wool).
  • Retting and cleaning — rotting the stem tissue away from bast fibre takes 2–6 weeks on dewy ground.
  • Spinning — twist is what turns loose fibre into yarn strong enough to weave.
  • Weaving — the warp under tension, the weft passed through it.
  • Finishing and dyeing — fulling wool into dense cloth, and fixing colour with a mordant so it does not wash out.

Cordage is the first half of the same craft, and the knots guide uses it. This page carries fibre all the way to cloth.

The fibres, and what each is for

Choose by climate and by what already grows or grazes nearby. Wool is the one to have in a cold, wet place: a wet woollen garment still insulates, where wet linen or cotton draws heat out of the body.

Natural materials for cordage Where cordage fibre comes from — tree bast, plant stalks and leaves, roots and vines, and animal sinew, hair and rawhide — with the cord each yields and the raw → fibre → cord sequence at the foot. Illustration, not a photograph. The fibres are drawn to show what each material yields, not to identify the plant it came from — confirm any species against a regional guide before you strip bark or cut stalks. Natural materials for cordage · 2026-09-15 · Civilization101 Blueprint (AI-generated) · CC BY-SA 4.0
Cordage making: from plants to rope Harvesting fibre from bark, bast, grasses, vines and leaves; preparing it; a six-step twisting and plying sequence; the variations; finished cords and their uses; tips and common mistakes. Illustration, not a photograph. Two corrections. Bast and bark must be retted, or at least fully dried, before twisting — green fibre shrinks as it dries, the twist loosens, and pith left in the cord rots it from inside. The plying rule, plainly: twist every strand the same way, then lay the strands together the opposite way; the common mistake on the sheet means plying in the same direction as the strands' own twist. Nettles sting until dried or retted, and agave sap blisters bare skin — wear gloves to strip them. Confirm any species against a regional guide before cutting. Cordage making: from plants to rope · 2026-09-16 · Civilization101 Blueprint (AI-generated) · CC BY-SA 4.0
FibreFromPropertiesBest for
Flax — linenStem of Linum usitatissimumStrong, smooth, cool, stronger wet; wrinkles; no stretchShirts, sheets, sails, thread, bandages. Temperate climates
HempStem of Cannabis sativaVery strong, coarse, rot-resistantRope, sacking, canvas, sail, work clothing
NettleStem of Urtica dioicaFine, strong, silky when well processedCloth and fine cordage where flax does not grow; gathered wild
CottonSeed hairs of GossypiumSoft, absorbent, easy to spin; weak wetClothing in warm climates. Needs a long hot season and ginning to remove seeds
WoolSheep fleeceCrimped and elastic; stays warm when wet; felts with heat, water and agitationWarm clothing, blankets, felt. The survival fibre of cold wet climates
Goat, alpaca, camelAnimal coatsFine, warm, often slippery to spinLuxury and warm cloth; blends with wool

Flax, from field to fibre

  1. Sow thickly in spring — dense stands grow tall and straight with long, fine fibre and few branches.
  2. Pull, do not cut, about 100 days later, when the lower third of the stems has turned yellow. Pulling keeps the full fibre length, which runs into the root.
  3. Ripple — comb the seed heads off through a coarse comb. Keep the seed: it is next year's crop and linseed oil.
  4. Ret — rot the soft tissue that glues fibre to the woody core:
    • Dew retting: spread stems thinly on short grass and turn them every week or so for 2–6 weeks, until the stems turn silver-grey.
    • Water retting: sink bundles in a pond or slow stream for 1–2 weeks, faster in warm water. Quicker and more even — and the retting water stinks, strips the oxygen from water and kills fish downstream, which is why medieval towns banned it near their rivers.
    • Test: snap a stem. When the fibre peels cleanly away from the woody core in long strands, it is done. Over-retted fibre is weak.
  5. Dry the retted stems thoroughly.
  6. Break — crush the stems in a wooden break so the brittle core shatters.
  7. Scutch — beat the broken stems with a wooden blade to knock the woody chaff (shives) out.
  8. Hackle — draw the fibre through combs of increasing fineness. The long, fine line flax spins to linen; the short tow left in the combs makes coarser yarn and cordage.
Flax dew-retting on the ground with its seed bolls. Weeks of dew and fungi rot the soft stem tissue away from the fibre inside. Dew retting flax close-up · 2015-07-31 · Stanzilla · CC BY-SA 3.0 · Commons ↗

Wool, from fleece to spinnable fibre

  1. Shear once a year, in early summer, when the new growth lifts the old fleece. Shear close and in long blows, so the fleece comes off whole.
  2. Skirt — spread the fleece and pull away the dung-matted, short and stained edges. They go to the compost.
  3. Scour — wash in hot water with soap, soaked, not agitated. Stirring or rubbing hot wet wool felts it into a solid mat. Change the water until it runs clear; dry in shade.
  4. Tease — pull the locks open by hand to release dirt and vegetable matter.
  5. Card or comb:
    • Carding between two brush-like cards makes a soft, airy rolag — fibres jumbled, for warm, lofty woollen yarn.
    • Combing aligns the fibres parallel and removes short ones, for smooth, strong, hard-wearing worsted yarn.

The natural grease, lanolin, can be left in for some spinning and for water-resistant outer garments.

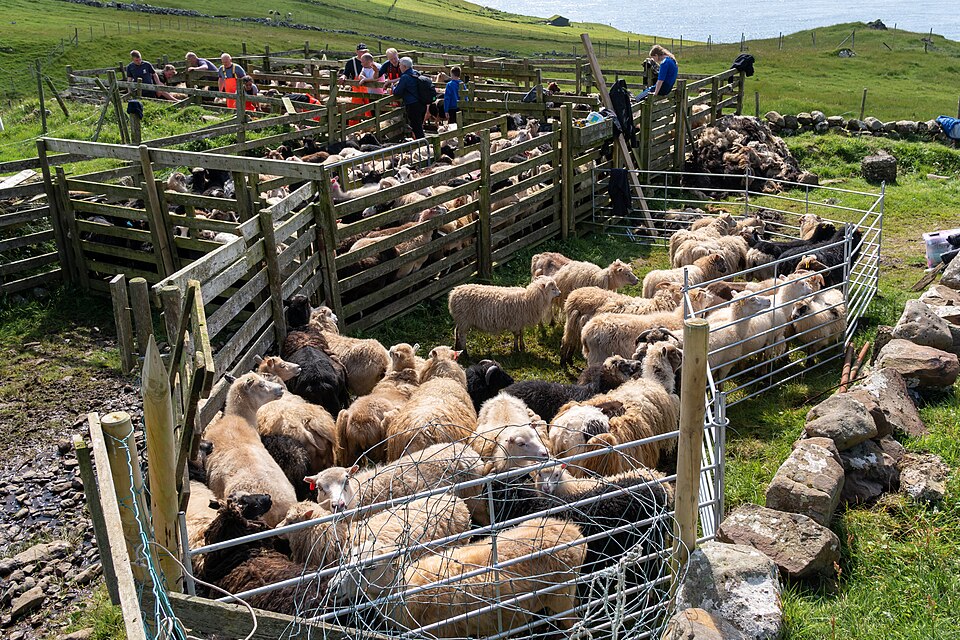

Sheep gathered into hurdle pens for shearing on the Faroe Islands. Pens and races turn a flock that would scatter into animals that can be handled one at a time. Mykines sheep shearing · Taken on 21 July 2022, 14:06:4 · Ekrem Canli · CC BY-SA 4.0 · Commons ↗

Spinning

Twist is what makes yarn. Loose fibres held in a line pull apart; twisted, they grip each other by friction and the yarn becomes strong. Spinning is just adding twist to fibres while drawing them out to an even thickness.

The drop spindle — a shaft with a weight, the whorl, near one end:

  1. Tie a length of spun yarn to the shaft as a leader, wind it on, and take it up over the whorl and round the tip.
  2. Set the spindle spinning with a flick of the fingers and let it hang.
  3. Draft — with one hand holding the fibre supply and the other just below it, draw fibres out into a thin, even strand. The twist runs up from the spindle into the drafted fibres and locks them.
  4. Keep the twist out of the fibre supply by pinching above the drafting zone until you are ready to let it in.
  5. When the spindle nears the floor, wind the new yarn onto the shaft and start again.

The whorl sets the yarn. A heavy, wide whorl spins slowly and long, for thick yarn; a light, small whorl spins fast, for fine yarn.

Plying. A single yarn is unbalanced — it twists back on itself. Spin singles one way (Z twist), then twist two or three singles together the other way (S twist). Plied yarn is balanced, stronger and more even.

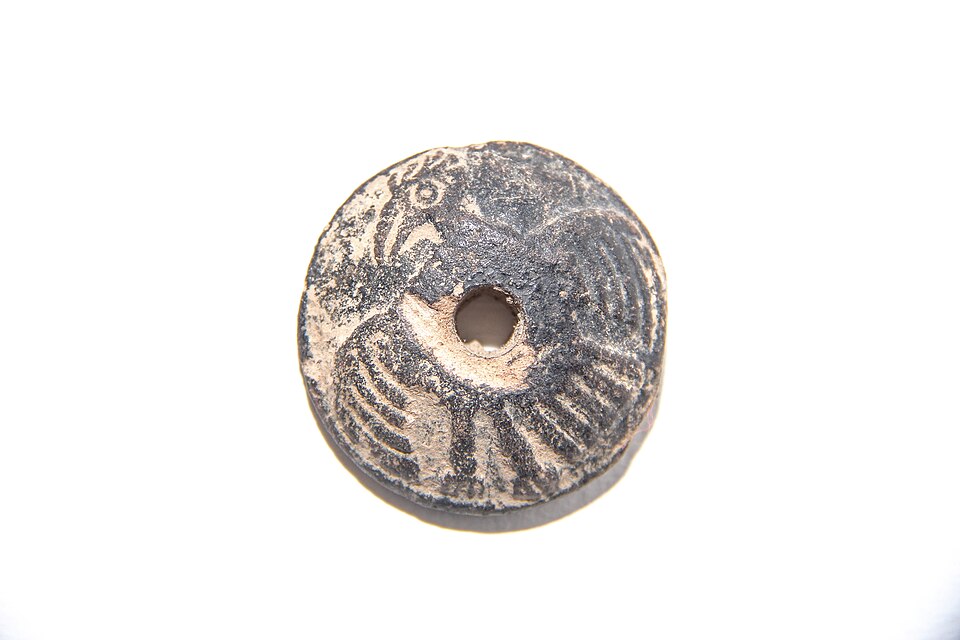

A clay spindle whorl from Mexico. Fixed on a shaft, its weight keeps the spindle turning, and the spin is what puts twist into yarn. Drop spindle from Mexico · 2017-04-29 · Peter van der Sluijs · CC BY-SA 4.0 · Commons ↗

Weaving

Every loom does the same four things: holds the warp — the long lengthwise threads — under tension; opens a shed, a gap between alternate warp threads; passes the weft through the shed; and beats it tight against the cloth.

The backstrap loom is the simplest real loom and still in daily use in much of the Americas and Asia. One end of the warp is tied to a post or tree, the other to a strap round the weaver's back. The weaver tensions the warp by leaning back, and opens the sheds with a shed rod and a heddle rod — a stick with loops of string lifting alternate threads. It packs up into a roll and needs no frame.

Warp-weighted looms hang the warp from a beam, tensioned by stone or clay weights; floor looms add treadles that lift shafts of heddles, so the feet open the sheds and patterns become possible.

Warp first. Most of the work of weaving is measuring and setting up the warp: every thread the same length, the same tension, in order. A badly tensioned warp weaves into cloth that puckers and pulls.

Weaves:

  • Plain (tabby) — over one, under one. The strongest and simplest.
  • Twill — over two, under two, stepped along each row, giving a diagonal. Denser, drapes better, hides dirt, and wears longer: work clothing and blankets.

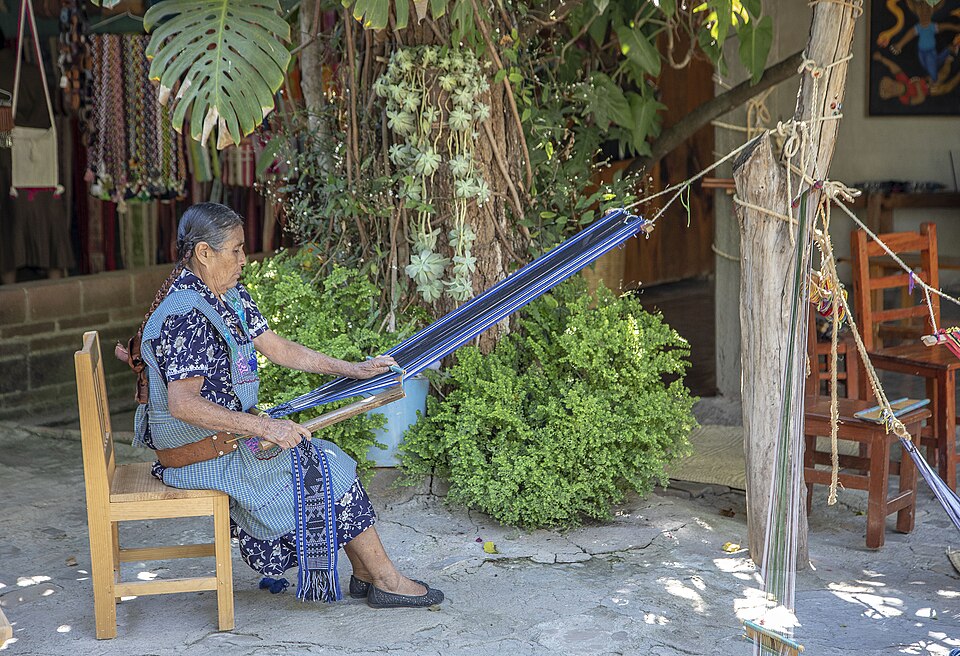

Weaving on a backstrap loom in Oaxaca: the far end tied to a post, the near end to a strap round the weaver, who leans back to tension the warp. Woman on a backstrap loom in Oaxaca · 2017-11-02 14:36:05 · David.Clay.Photography · CC BY-SA 4.0 · Commons ↗
A handloom in Kachchh, Gujarat, with the warp under tension and the pattern building up. Traditional weaving in Kachchh, Gujurat · 2023-03-31 · WikiMogra · CC BY-SA 4.0 · Commons ↗

Fulling and dyeing

Fulling turns loosely woven woollen cloth into dense, windproof, water-shedding fabric. Soak the cloth in warm water with soap — historically fuller's earth or stale urine — and pound, tread or rub it. The wool fibres lock together and the cloth shrinks — often by a quarter or more — and thickens. Stop when it is dense enough; it cannot be undone.

Dyeing. Most plant dyes wash out unless the fibre is first treated with a mordant, a metal salt that binds dye to fibre.

  1. Scour the fibre first — dyes take unevenly on greasy wool.
  2. Mordant: simmer the fibre in water with alum (potassium aluminium sulphate) at about 10–15% of the dry weight of the fibre — 10–15 g of alum per 100 g of wool — for an hour. Alum is the safe, standard mordant.
  3. Dye: add the prepared fibre to the dye bath and heat slowly.
  4. Cool slowly, rinse, and dry in shade.
Wool dyed with madder root — the reds, pinks and oranges one plant gives depending on mordant, strength and temperature. Modern wool fleece dyed with madder roots · 2024-04-28 · SalemOptix · CC0 · Commons ↗
DyeColourMordantNotes
Madder rootReds, pinks, orangesAlumKeep the bath below about 70–80 °C — hotter turns reds brown
Weld (dyer's rocket)Clear yellowAlumThe brightest, most lightfast plant yellow in Europe
Woad, indigoBluesNone — a vat dyeThe dye must be chemically reduced in an alkaline vat, then oxidises blue in the air as the fibre is lifted out
Walnut hullsBrownsNone neededA substantive dye — it binds without a mordant. Stains hands for days
Onion skinsYellows, oranges, rustAlumFree, and a good first dye to learn on
Any dye + ironDarker, duller shadesIron — 'saddening'A little iron turns yellows to olive and reds to purple-brown. Too much rots the fibre
Mordants and dye pots are not kitchenwareAlum is relatively safe. Copper, chrome and tin mordants are toxic, and historic dye recipes use them freely — avoid chrome entirely, and use copper and tin only with gloves, ventilation and safe disposal. Some dye plants are poisonous in themselves. Keep dye pots, spoons and measuring tools for dyeing only, never cooking, and keep spent mordant baths out of drinking water and away from animals.

Where to go next

This page covers what you are most likely to meet. It is not a field guide, and on identification that difference can kill you. These are the works that go further — chosen because they can be held offline.

Still to come

Illustrations carry a technique further than prose, but some things only move well. Recorded here rather than left implicit.

  • A dimensioned drawing of a backstrap loom set up, showing the shed rod, heddle rod and how to make string heddles
  • Photographs of the flax brake, scutching knife and hackles in use
  • Felt-making, which turns wool directly into cloth with no spinning or weaving at all
  • Sewing and needles: bone and metal needles, thread, and the stitches that hold garments together
