Spring-pole lathe
The first machine tool — a sapling, a cord and a treadle, and the direct ancestor of everything in tier 3.
Home: Woodworking, Level 1 · Foothold, level 1 of 1 in its track. Serves 3 steps across 2 subjects.
Every build on this site has hazards that injure or kill — quicklime, carbon monoxide, molten metal, collapsing ground. Read the safety notice before starting, and read this build's own failure modes below.
What it is and why this shape
Almost everything above tier 1 needs something round and true: axles, wheel hubs, handles, bearings, rollers, pulleys, screw blanks, bowls, spindles. Doing that by hand with a knife gives you approximately round. A lathe gives you concentric, and concentric is the property that matters, because a shaft that is not concentric wobbles, and a wobbling shaft destroys its bearings.

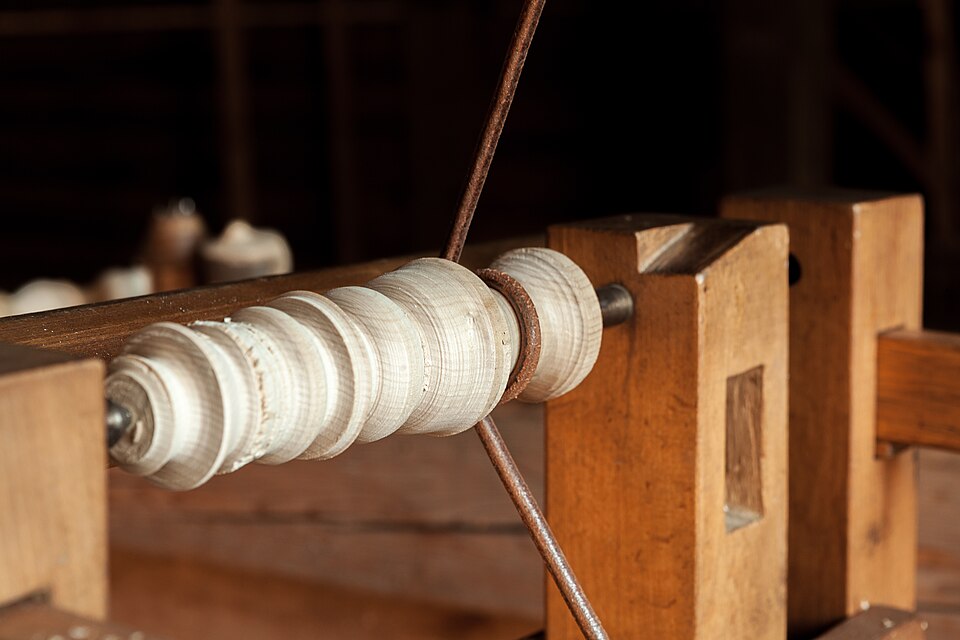

The spring-pole lathe is the simplest machine that achieves it. A cord is wrapped round the work, tied to a treadle below and to a springy sapling above. Push the treadle and the work turns toward you and you cut; release, and the pole pulls it back for the next stroke. It only cuts on the down stroke — half the time is a return — which is slow and completely irrelevant, because the accuracy comes from the centres and the tool rest, not from the speed.
This machine matters far beyond woodturning. It is where you learn the ideas the whole of tier 3 rests on: work held between fixed centres, a tool supported on a rest instead of by hand, cuts referenced to an axis rather than to an eye. The metal lathe is this machine made rigid.
Keyed parts
| 1 | Spring pole — a green sapling | Ash, hazel or birch. Provides the return stroke. Its springiness sets the rhythm of the whole machine. |
| 2 | Cord, two turns round the work | Two turns grip; one slips, three bind. The cord is the consumable — keep spares. |
| 3 | Poppets (headstock and tailstock) | Slide along the bed and wedge. They carry the centres. |
| 4 | Centres — hardened points | The accuracy of everything comes from these two points and nothing else. |
| 5 | Tool rest | Adjustable in height and along the bed. Must sit close to the work — this is a safety item as much as an accuracy one. |
| 6 | Bed — two parallel rails | Rigid and parallel. Any flex here shows up directly as chatter in the work. |
| 7 | Treadle | Pivoted at one end, cord at the other. Full-length stroke for a smooth cut. |
| 8 | Wedges | Everything is held by tapered wedges. No screws, no metalwork, and fully adjustable. |
Specifications
| Between centres | up to 1.0 m | Poppets slide along the bed for shorter work |
| Swing (max diameter) | ≈ 150 mm | Set by centre height above the bed |
| Centre height | elbow height, standing | Fit the machine to the person, exactly as with the forge |
| Bed length | 1.8 m | Two parallel rails, rigid and parallel along their length |
| Spring pole | 3–4 m green sapling | Ash, hazel or birch, 50–70 mm at the butt |
| Cord | 6–8 mm, 2 turns | Leather, hemp or hide. Two turns exactly |
| Treadle stroke | ≈ 300 mm | Giving roughly 2 revolutions per cutting stroke |
| Achievable accuracy | < 0.5 mm concentricity | Better than most people expect, and entirely a function of the centres |
| Cutting speed | slow, intermittent | Irrelevant. Accuracy comes from geometry, not speed |
Bill of materials
| Material | Quantity | Notes and substitutes |
|---|---|---|
| Bed rails | 2 × 1.8 m | Straight, seasoned, stiff hardwood. Parallel matters more than pretty. |
| Legs and frame | ≈ 5 m | Heavy. Mass damps vibration, and vibration is what spoils the cut. |
| Poppets | 2 | Hardwood blocks that slide the bed and wedge in position. |
| Centres | 2 | Hardened steel points. Substitute: a hardwood point in the tailstock, greased, will do until you have a forge. |
| Tool rest | 1 | Hardwood with a hardwood or metal top edge, adjustable for height and position. |
| Spring pole | 1 | Green sapling. Replace when it loses its spring — typically each season. |
| Cord | 3 m + spares | The consumable. It will break mid-cut, so have replacements to hand. |
| Treadle | 1 | A stout board, pivoted at one end. |
| Wedges | 6–8 | Tapered hardwood. This is the entire fastening system. |
| Turning tools | 3–4 | Gouge, skew chisel, parting tool. Long handles for leverage against the rest. |
Tools: Saw, axe, auger, chisel · Plane or drawknife · Straightedge · Something to sharpen with — constantly
Construction
Build the bed heavy and parallel
Set centre height to the turner
Make the poppets and fit the centres
Make the tool rest adjustable
Rig the pole, cord and treadle
Mount work between centres
Cut on the down stroke, lift on the return
Sharpen constantly
Tolerances that matter
| Dimension | Target | Why it matters |
|---|---|---|
| Centre alignment | points meet exactly | This is the whole accuracy of the machine. Everything else can be rough. |
| Bed rail parallelism | ±2 mm over length | The poppets must slide and clamp truly at any position. |
| Tool rest to work | ≤ 6 mm | Safety before accuracy — a distant rest lets the work lever the tool out of your grip. |
| Cord turns | exactly 2 | One slips under cutting load; three bind, rub and wear out fast. |
| Frame rigidity | no perceptible movement | Flex becomes chatter, and chatter cannot be sanded out of a bearing surface. |
How this fails
How you know it worked
Scaling and variants
Add a flywheel and a crank and you have a continuous-motion treadle lathe: it cuts on every stroke rather than half of them, and the flywheel carries the tool through hard spots. Roughly twice the productivity, and it needs a crankshaft — which is itself a good first serious job for the lathe you already have.
Power it from a water wheel through a belt and you have the shop lathe that ran workshops for centuries.
Make it cut metal and you are at the machine that defines tier 3. That step is not about power, it is about rigidity and a leadscrew: a metal lathe needs a frame an order of magnitude stiffer, a tool carried on a slide rather than in the hands, and a leadscrew to advance that slide at a controlled rate. Build the wooden one first — everything you learn about centres, rests and cuts transfers directly, and the wooden lathe can make many of the parts for the metal one.
