Drinking water

The thing that kills first, and the one problem on this site that is completely solved — provided you do it every single day, including the day everyone is exhausted.

Home: Make water safe, Level 0 · Triage, level 1 of 3 in its track. Serves 4 steps.

Diarrhoeal disease is the largest killer in every collapse, every siege and every refugee camp on record. It outkills violence, cold and hunger, and it does it to the youngest and the oldest first. It is also, unlike almost everything else on this site, a solved problem: the fix is heat, heat is free, and it has been understood for a century and a half.

So the difficulty is never knowledge. It is discipline. Groups do not die because nobody knew to boil the water; they die because on day forty somebody was tired, the fire was out, the water looked clean, and it was only one cup.

This guide is built around that. It covers what to look at before you touch the water, how to make it safe, the three or four widely believed methods that do not work, and the hazards that boiling cannot touch at all. It ends with the part that actually decides the outcome: how to make the routine survive contact with a bad week.

Reading the water before you touch it

You will rarely get a choice between good water and perfect water. You will get a choice between several bad options, and the skill is ranking them fast.

Two rules do most of the work. Moving beats still, because still water grows things and concentrates what falls into it. Underground beats surface, because soil and gravel are a filter that has been running for longer than you have been alive.

But the ranking below is about how much treatment the water needs, not about whether you can skip treatment. There is exactly one entry on this page you can drink untreated, and even then only if you can see it leaving the rock.

What the water is telling you

These are the judgements you make standing on the bank, before any equipment comes out. The verdict is about how much work the water needs — not a licence to skip the boiling.

Best source
A spring, at the point it emerges
Tell: Water coming directly out of rock or a hillside, clear, cold, and at a steady temperature year-round.
The best water available without technology — filtered through rock for years. Take it where it leaves the ground, not thirty metres downstream where animals have stood in it. Still boil it if anyone in the group is already ill.
Big Spring Missouri 1-02Aug08 · 2007-08-02 · Kbh3rd · CC BY-SA 3.0 · Commons ↗
Treat, then drink
A turbid river
Tell: Brown, opaque, carrying visible sediment — usually after rain or snowmelt.
The mud is not itself the danger; what rides on it is, and the turbidity shields microbes from heat, chlorine and sunlight alike. This water must be cleared before it is disinfected. See the next section.
Turbid Esopus Creek in January 2021 · Taken on 11 January 2021 · Daniel Case · CC BY-SA 4.0 · Commons ↗
Treat, then drink

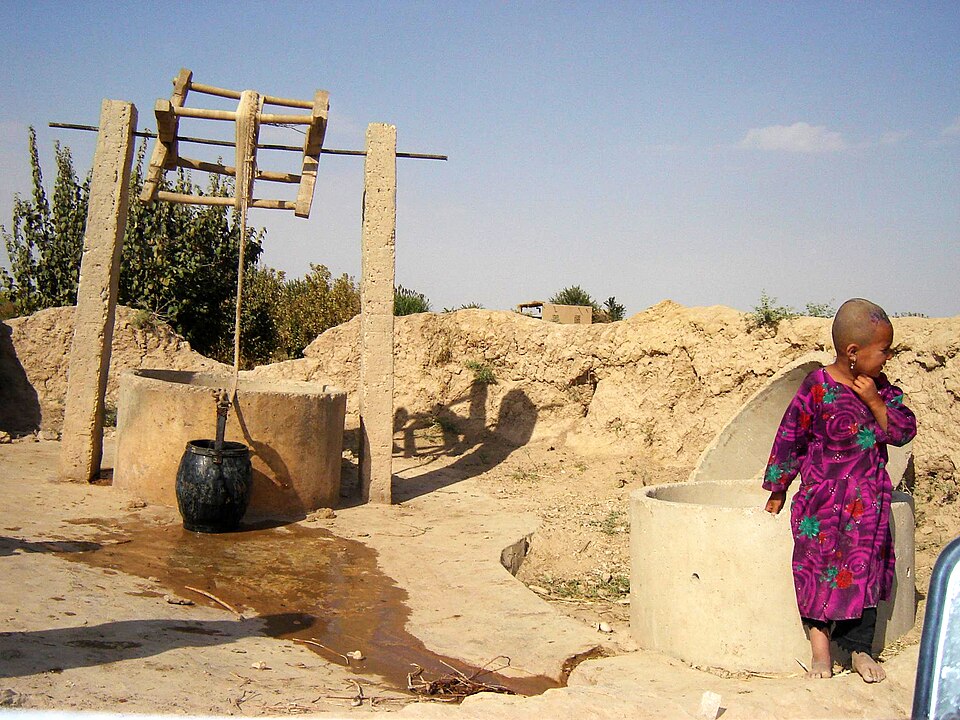

An open dug well
Tell: A shaft with a bucket on a rope, an unsealed top, and often a wet apron of spilled water round it.
Better than the surface, but the bucket, the rope and the runoff put contamination straight back in. Seal the head, keep one dedicated drawing vessel that never touches the ground, and slope the apron away.
Faryab- village dug well · 2006-04 · Didiervberghe · Public domain · Commons ↗
Treat, then drink
Standing water
Tell: No inflow or outflow, weed-choked, warm, still. Often the only thing available in a dry season.
Drinkable only after clarifying and hard boiling, and it is the last thing you should reach for. Look for what is living in it: mosquito larvae mean it has been still a long time.
Stagnant pond - geograph.org.uk - 3094219 · 2012-08-19 · Stephen Craven · CC BY-SA 2.0 · Commons ↗
Do not drink
An algal bloom
Tell: Water the colour and consistency of green paint, often streaked or scummed against the downwind shore.
Cyanobacterial toxins are heat-stable — boiling does not touch them, and boiling down concentrates them. They also pass through a sand filter. Do not drink it, do not cook with it, do not water animals with it, and do not swim in it.
Blue-gree algae bloom Lake Erie · Summer 2009date QS:P,+2009-00- · NOAA · Public domain · Commons ↗
Do not drink
Mine or industrial drainage
Tell: Orange, rust-red or unnaturally clear water with stained rock, and nothing at all living in it.
Dissolved metals and acid. No amount of boiling, filtering or settling makes this safe, and a sand filter will not remove any of it. Water with no life in it is telling you something.
Rio tinto river CarolStoker NASA Ames Research Center · 2002-07 · Carol Stoker, NASA · Public domain · Commons ↗
Absence of life is a warning, not a reassuranceClear water with no insects, no larvae, no weed and no fish is far more likely to be chemically poisoned than clean. Living things in the water are a hygiene problem you can fix by boiling; the absence of them is a problem you cannot fix at all.

Clear it first, or nothing else works

Every disinfection method on the next page is defeated by cloudy water. Suspended particles physically shield microbes from heat, from chlorine and from ultraviolet, and organic matter eats chlorine before it reaches anything alive. Clarifying is not a cosmetic step and it is not optional.

The cheapest method is time. Fill a vessel, leave it, and the sediment falls out on its own. A three-pot arrangement makes this continuous: the newest water settles in the first, yesterday's decants into the second, and the clear water from the second goes to the fire.

For faster results, or where the particles are too fine to settle:

  • Cloth, folded four to eight times. Tightly woven cotton is best; a folded sari removes a surprising amount, including the copepods that carry guinea worm. Always fold the same face down, and wash and sun-dry it between uses.
  • A sand-and-gravel pre-filter. A bucket with gravel below and sand above, feeding the settling pots. This is not disinfection, and water out of it is not safe to drink.
  • Coagulation. Alum, if you have it, at roughly a teaspoon to twenty litres — stir hard for a minute, slowly for five, then leave an hour. Crushed Moringa oleifera seed does the same job where the tree grows: about one seed per litre, ground, and it removes most turbidity and a good share of the bacteria with it.

What you are aiming for is water you can read newsprint through. That is not clean, and it is not safe. It is merely ready to be made safe.

Three-pot settling, run continuously Fig 1
Masonry / brickLoose fill / grainWater
The point is that no vessel is ever both filling and drawing at once. Water enters at the left, moves right by one pot each day, and only pot 3 is ever tipped into the boiler. Never pour the last inch — that is where everything you removed is sitting.
A river carrying sediment after rain. The turbidity itself shields microbes from heat, chlorine and sunlight. Turbid Esopus Creek in January 2021 · Taken on 11 January 2021 · Daniel Case · CC BY-SA 4.0 · Commons ↗
Charcoal is not a water filterCrushed charcoal improves taste and adsorbs some chemicals. It does not remove bacteria, viruses or protozoa, and a charcoal layer that stays wet becomes a bacterial culture. Charcoal after boiling is fine. Charcoal instead of boiling kills people.

The methods that work, ranked by how little can go wrong

Only four methods matter at small scale. They are ranked here by reliability under bad conditions — tired people, poor light, no measuring equipment — not by elegance.

Boiling is first and it is not close. It needs no dose, no contact time, no measurement and no working knowledge of chemistry. The water is safe when it reaches a rolling boil, and the killing is essentially finished on the way up. Holding it there for minutes is a myth that costs fuel; the extra minute per 1,000 m of altitude is margin, not requirement. Boiling handles everything living — bacteria, viruses, protozoal cysts including Cryptosporidium, which resists chlorine badly.

The reason to know the others is fuel. Boiling every litre a group drinks is a large and permanent firewood bill, and firewood is the constraint that eventually decides how long a camp can stay where it is.

A rolling boil: no dose, no timer, nothing to measure. 2008-07-05 Water boiling in cooking pot · Ildar Sagdejev (Specious) · CC BY-SA 4.0 · Commons ↗

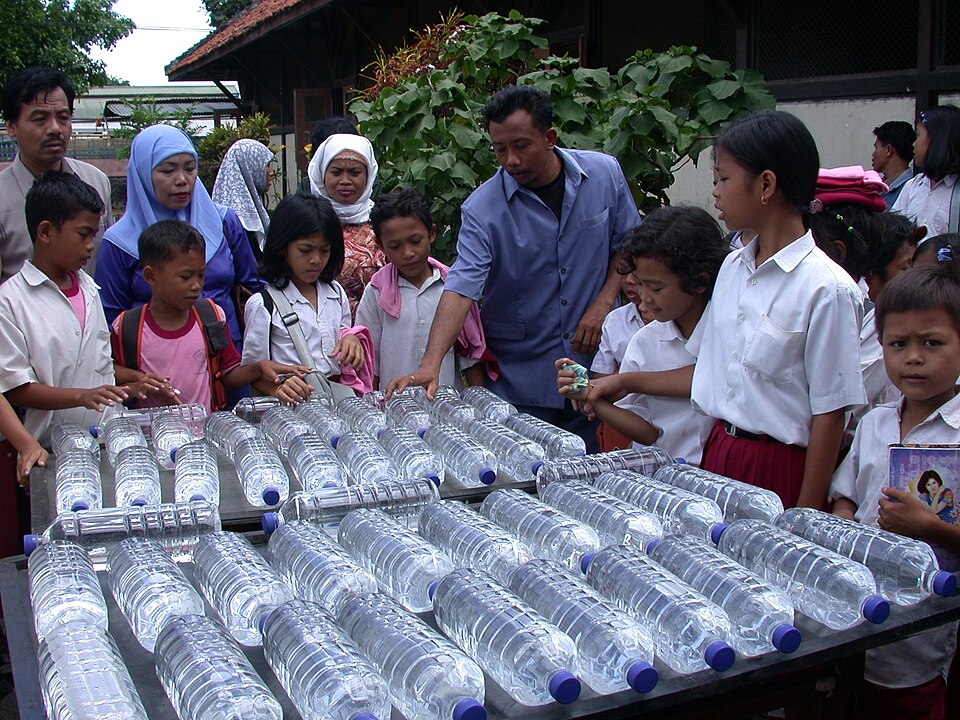

SODIS in use: clear PET bottles laid out in full sun for six hours. Needs clear water and a cloudless day. Indonesia-sodis-gross · SODIS Eawag · CC BY 3.0 · Commons ↗
MethodWhat it needsWhat it killsWhat it missesCost
BoilingFuel and a pot. A rolling boil is the whole indicatorEverything living, including Cryptosporidium and virusesChemicals, metals, salt, cyanotoxins — and it concentrates all of themHeavy and continuous fuel use
SODIS — sunlightClear PET bottles under 3 litres, full sun, 6 h (2 days if overcast). Water must already be clearBacteria, viruses, most protozoaPoor against Cryptosporidium; fails in cloud, fails in turbid water, fails in a big or coloured bottleFree, but slow and weather-dependent
ChlorineBleach or chlorine tablets, and clear water. Roughly 2 drops of unscented 5 % bleach per litre; wait 30 minutes; faint chlorine smell means it workedBacteria and viruses reliablyCryptosporidium almost entirely. Consumed by organic matter before it worksDepends on a supply you cannot make
Slow sand filterA barrel, graded sand, and weeks of patience while the biological layer forms90–99 % of bacteria and most protozoa once matureViruses, chemicals. Not a substitute for boiling drinking waterBuild once, run forever, no fuel
Settling and clothTime and a folded clothNothingEverything — this is preparation, not treatmentFree
The rolling boil is the indicator, and that is the pointEvery other method needs something measured: a dose, a contact time, an hour of sun. Boiling needs one thing a tired person can see across a dark room. That is why it is first, and why the fuel is worth it for drinking water even when a filter is running for everything else.
Boiling makes chemical problems worseHeat removes nothing dissolved. Water boiled down loses volume and leaves the arsenic, fluoride, nitrate, lead and salt behind at higher concentration than it started with. If the problem is chemical rather than biological, boiling is the wrong tool and using it harder makes it worse. See the chemical hazards below.

Slow sand: the only method that scales

Boiling solves the problem one potful at a time and burns wood doing it. A slow sand filter solves it continuously, for a household or a settlement, using no fuel at all — and it is old, forgiving technology that predates any understanding of why it works.

What makes it work is not the sand. It is the schmutzdecke, a living biological layer that forms on the top few millimetres over the first few weeks of running, in which organisms consume what arrives. A brand-new filter is a sieve and removes very little. The same filter a month later removes most bacteria and most protozoa.

Three things follow from that, and all three are counter-intuitive:

  • The filter must never dry out or be starved of water. The layer dies, and you are back to a sieve with no warning that anything changed.
  • Slow is not a limitation, it is the mechanism. Running it fast pushes water past the biology. Roughly 0.1–0.3 m per hour of face velocity is the working range.
  • Cleaning means skimming the top centimetre, not washing the sand. Wash it and you have thrown away the part that does the work, and you start the weeks again.

A mature filter is excellent at bacteria and protozoa, mediocre at viruses, and does nothing at all to dissolved chemicals. In practice: filter everything, and boil what you drink.

A column showing the media profile — fine sand on top, graded gravel supporting it below. Slow sand filter profile · 2014-06-25 09:46:05 · Z22 · CC BY-SA 3.0 · Commons ↗
Safe water — slow-sand filtration Choosing a source, the anatomy of a slow-sand filter bed by bed, the build sequence, the four mechanisms that actually clean the water, its operation and — the panel that matters most — what it does not remove. Illustration, not a photograph. Not to scale: read it for the layer order, the grain sizes and the flow rate, and take the dimensions from the build page. Filtration is not disinfection. A slow-sand filter does not remove all viruses, dissolved chemicals, salt or algal toxins, and clear water is not safe water — disinfect after filtering whenever the source or the state of the filter is in any doubt. Safe water — slow-sand filtration · 2026-09-15 · Civilization101 Blueprint (AI-generated) · CC BY-SA 4.0
Build itDimensions, media grading, flow rates and the ways it fails are on the slow sand filter build page.

What does not work — and what it costs to believe it

Everything in this section is widely believed and regularly repeated. Each one has killed people who thought they had treated their water.

  • "Running water is safe." It is better than standing water, and that is all. A fast, clear mountain stream carries Giardia perfectly well, generally from an animal you cannot see a kilometre upstream. Clarity is a statement about sediment, not about biology.
  • "You can tell by looking, smelling or tasting." You cannot. The infectious dose of some organisms is under ten cells. No water on earth looks like ten cells.
  • "Charcoal filters it." Covered above. Taste and some chemicals, not pathogens.
  • "Cloth or a sand filter is enough on its own." Both are preparation. Neither disinfects, and a fresh sand filter barely even reduces.
  • "Boiling for ten minutes is needed." No — reaching a rolling boil is sufficient, and the myth burns fuel that a group cannot spare, which in practice means people boil less often rather than longer.
  • "Alcohol in it makes it safe." No. The concentration required is far above anything drinkable, and the belief has killed people who diluted spirits with river water.
  • "A little is fine." The single most common failure. Infection is not proportional to volume.
  • "It is fine, we have been drinking it for weeks." Contamination is an event, not a property. The latrine seeps, the animal dies upstream, the flood comes, and yesterday's safe source is today's outbreak.
The failure is almost never ignoranceGroups that lose people to waterborne disease usually knew exactly what to do. What happened is that the rule had an exception, then two, and then it was not a rule. Treat every drop, every time, including the cup you drink standing at the fire, and including the water you rinse a bowl with. The exception is the outbreak.
Rehydration matters more than diagnosisIf someone does get sick, dehydration is what kills them, not the organism. Give the WHO home recipe — 1 litre of safe water, 6 level teaspoons of sugar, ½ level teaspoon of salt — continuously in small sips. This is on wound care and first aid and in far more detail in Hesperian's Where There Is No Doctor, linked below.

The hazards heat cannot touch

Everything above this section is about things that are alive. This section is about the ones that are not, and the rule for all of them is the same: boiling does nothing, filtering through sand does nothing, and reducing the volume makes it worse.

These are slow poisons. Nobody notices them in week one, which is exactly why they belong in a guide read in week one — a source chosen now may be drunk from for years.

Acid mine drainage staining a riverbed orange. Nothing lives in it, and no amount of boiling or filtering makes it safe. Rio tinto river CarolStoker NASA Ames Research Center · 2002-07 · Carol Stoker, NASA · Public domain · Commons ↗
HazardWhere it comes fromWhat it doesWhat actually helps
ArsenicNatural in some groundwater — notoriously in the Ganges–Brahmaputra delta. Odourless, tasteless, invisibleSkin lesions, then cancers, over years. Affects tens of millions of peopleA different source. Deep wells vary hugely well to well; iron-based filtration and coagulation work but need testing to confirm
FluorideVolcanic and granite groundwater — the East African Rift, parts of India and ChinaMottled teeth, then crippling bone disease at high dosesBlend with low-fluoride water, or bone-char filtration. Boiling concentrates it
NitrateLatrines, manure and fertiliser leaching into shallow wellsBlue-baby syndrome — potentially fatal in infants under six monthsMove the well or move the latrine. This one is usually self-inflicted and preventable
LeadLead pipe, lead solder, lead-glazed pots, some salvaged plumbingCumulative neurological damage, worst in childrenDo not use lead anywhere in the water path. Never draw drinking water from the hot tap of an old system
SalinityCoastal aquifers, over-extracted wells, storm surgeUndrinkable above about 1 g/l; seawater actively dehydratesOnly distillation or a solar still. No filter removes salt
CyanotoxinsAlgal blooms, as aboveLiver and nerve damage; kills livestock and dogs quicklyAvoid the water entirely. Heat-stable and not removed by sand
You cannot test for these without a laboratoryThere is no field test for arsenic or fluoride worth trusting, and no sensory clue at all. The practical defence is local knowledge and the historical record: what did people here drink, which wells did they avoid, and what did they say about them. If a community abandoned a well, find out why before you reopen it.

Carrying and storing it without putting the contamination back

A remarkable share of waterborne disease is contracted after treatment. The water was boiled properly, and then it was poured into the vessel it came from, or a hand went in it, or the cup that was used to serve it had been sitting on the ground.

The rules are short and they are all about hands:

  • Narrow necks beat wide mouths. A vessel you cannot get a hand into cannot be contaminated by a hand. This is why the jerrycan and the narrow-mouthed pot exist in every culture that carries water.
  • Pour, never dip. One dedicated dipper with a long handle, hung up and never laid down, if you must dip at all.
  • Keep two vessels and never mix their roles. One is raw, one is treated. Mark them so unmistakably that a tired person in the dark cannot confuse them. Never let the raw vessel touch the treated one's lip.
  • Cover everything. Flies and dust are the two commonest re-contamination routes after hands.
  • Store it cool and dark, and turn it over. Treated water is not sterile and does not stay good indefinitely. Boil what you will drink in a day rather than accumulating a week's worth.
  • Wash and sun the vessels. Ultraviolet is free and does most of the work on the inside of a rinsed container left open to the sky.

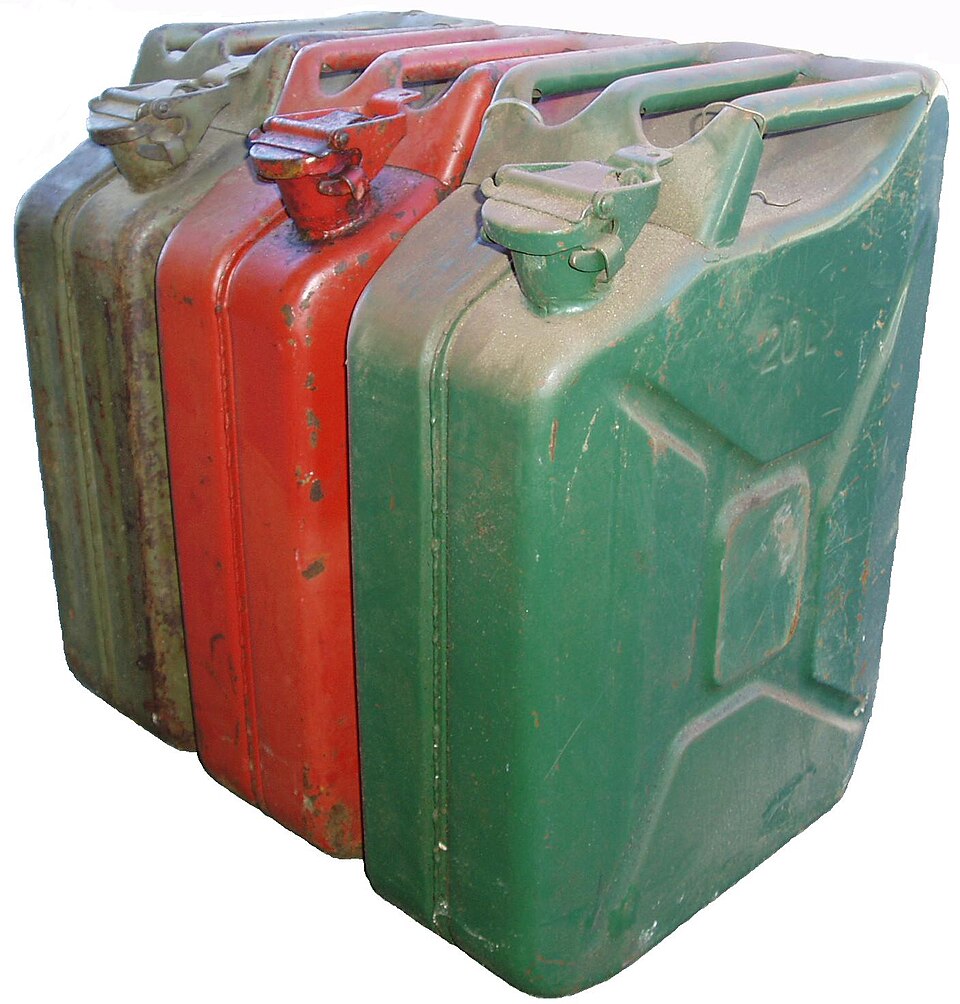

A narrow-necked carrier. A vessel you cannot get a hand into cannot be contaminated by a hand. Jerrycan · 13 May 2006 (original upload d · No machine-readable author provided. JohnM assumed (based on copyright claims). · Public domain · Commons ↗
The latrine decides whether any of this mattersWater treatment fails completely if the faecal–oral route is open elsewhere — unwashed hands, flies, a latrine uphill of the well. Handwashing at the latrine and at the kitchen is not a refinement, it is half the intervention. See separate waste from water.

Making the routine survive a bad week

This section is the reason the guide exists. Nothing above is difficult; all of it is done correctly for the first month and then decays. What follows is how groups that survived kept it going.

  • One person owns water, by name. Not "everyone is responsible", which means nobody is. The role rotates on a schedule, and the handover is spoken aloud.
  • The treated vessel is physically different. Different shape, different colour, different place. Never a matter of remembering which is which.
  • Boil on a schedule, not on demand. A fixed potful at a fixed time, every day, whether or not it seems needed. Treatment that happens when someone is thirsty is treatment that gets skipped when someone is busy.
  • Site for it once, properly. Camp above and upstream of the latrine, 30 m minimum, and check where the water goes when it floods rather than where it sits today. This decision cannot be revisited cheaply.
  • Watch for the first case and act on it immediately. One person with watery diarrhoea is an event to investigate — which source, which vessel, which meal. Two is an outbreak, and by then the cause is a week old.
  • Teach it to the children explicitly. They will drink from the stream on the way back from anywhere unless the rule has been said out loud to them, repeatedly, in specific terms.
How you know it is workingNobody has had watery diarrhoea for two weeks; every person can describe the treatment routine without prompting; and the handwashing station is wet at the end of every day. That last one is the honest measure, because it is the one nobody performs for an inspection.

Build the gear

Where to go next

This page covers what you are most likely to meet. It is not a field guide, and on identification that difference can kill you. These are the works that go further — chosen because they can be held offline.

manual Guidelines for Drinking-water Quality World Health Organization · free, 4th edition The reference the rest of the world's water rules are derived from: what each contaminant does, at what concentration, and what actually removes it. Dense, but definitive on the chemical hazards this page can only summarise. book Where There Is No Doctor Hesperian Health Guides · free, many languages How to treat the disease when prevention has already failed — rehydration salts, dysentery, cholera, and how to run a sick household without infecting the rest of it. Written for people with no hospital. book A Community Guide to Environmental Health Hesperian Health Guides · free The companion volume, and the better one for this page: wells, latrines, drainage, rainwater and household treatment, drawn and written to be taught by people who are not engineers. manual SODIS — solar water disinfection Eawag / Sandec, Swiss Federal Institute of Aquatic Science The research group that developed and validated SODIS. Their material is where the six-hour figure, the bottle-size limit and the turbidity threshold on this page come from. manual Household water treatment and safe storage CAWST · free training and technical resources Biosand filter construction drawings, chlorination dosing, and the safe-storage practices in the section above, written as field training rather than as a specification. archive Wikipedia, offline Kiwix ZIM — runs with no network at all Water treatment, hydrology and disease articles, available on a machine with no connection. Download it while there is still a network to download it with. archive CD3WD appropriate-technology archive Internet Archive Hand-dug well construction, spring boxes, rainwater catchment and pump repair, written for places with no supply chain.

Still to come

Illustrations carry a technique further than prose, but some things only move well. Recorded here rather than left implicit.

  • Figures for the spring box and the sealed well head — the two constructions that turn a caution-rated source into a good one
  • A solar still figure, for the salinity case, which is currently the only hazard here with no drawn answer
  • Photographs of a working slow sand filter's schmutzdecke, mature and freshly skimmed
  • Regional guidance on arsenic and fluoride belts — where the known problem aquifers are, which is knowledge no amount of on-site testing replaces
