Understand the gas turbine, the pressurised cabin, the helicopter and the air traffic system that let aircraft fly high, fast and safely in crowded skies.
A cutaway turbofan on display, 2018: fan, compressor, combustor and turbine in one long casing.Ishikawajima-Harima F3-IHI-30B turbofan engine(cutaway model) at Niconico chokaigi April 28, 2018 03 · 2018-04-28 15:01:14 · Hunini · CC BY-SA 4.0 · Commons ↗
The first jet aeroplane, the Heinkel He 178, flew on 27 August 1939, nearly two years before Britain's Gloster E.28/39 on 15 May 1941 (Britannica). Jets fly high, where the thin air cuts drag, and that needs a pressurised cabin; helicopters do what no fixed wing can, at the price of four controls that all interact; and crowded skies need controllers who keep aircraft apart.
The shape of it
Gas turbine: compressor, combustor and turbine on one shaft.
Pressurised cabin: no higher than 8,000 ft inside, and oxygen for every seat.
Helicopters: collective, cyclic, pedals and throttle, used together.
Air traffic control: clearances, radar and radio keep aircraft apart.
Turbojet in section; turbofan belowFig 1
MetalLoose fill / grainFire / hot zone
Air is compressed, burned with fuel in the combustor, and expanded through the turbine, which drives the compressor; the rest leaves the nozzle as a fast jet. In a turbofan, a large fan sends most of the air round the core.
Helicopter controlsFig 2
MetalLoose fill / grain
The collective raises or lowers the pitch of all main blades together; the cyclic tilts the rotor disc; the pedals set the tail rotor's thrust; the throttle holds rotor speed.
Doing it, step by step
The summary above says what has to happen. This says how, with the numbers that decide whether it works.
1 — The gas turbine
The compressor, many rows of small blades, squeezes the air.
In the combustor, fuel burns in it continuously.
The hot gas drives the turbine, a few rows of blades on the same shaft, which turns the compressor.
What energy is left leaves the nozzle as a fast jet: the thrust.
A turbofan adds a large fan driven by the core; most of the air goes round the core, pushed less fast, which takes less fuel and makes less noise. A turboprop or turboshaft takes nearly all the energy off the turbine to turn a propeller or a helicopter rotor.
A cutaway turbofan on display, 2018: fan, compressor, combustor and turbine in one long casing.Ishikawajima-Harima F3-IHI-30B turbofan engine(cutaway model) at Niconico chokaigi April 28, 2018 03 · 2018-04-28 15:01:14 · Hunini · CC BY-SA 4.0 · Commons ↗
✓ Check: You can trace the air through each stage and say what each does to its pressure, temperature and speed.
2 — High altitude and the pressurised cabin
Airliners must keep a cabin pressure altitude of no more than 8,000 ft in normal flight; an airliner certified to fly above 25,000 ft must not expose anyone to more than 15,000 ft after any probable failure of the pressurisation (14 CFR 25.841).
If pressure is lost, oxygen masks drop at every seat: at 35,000 ft the time of useful consciousness is 30–60 seconds (FAA). Put your own mask on first.
✓ Check: The cabin holds 8,000 ft or lower at cruise, and oxygen reaches every seat on a decompression.
Collective (left hand): changes the pitch of all the main blades together: more lift to climb, less to descend.
Cyclic (right hand): tilts the rotor disc through the swashplate; the helicopter moves the way the disc tilts.
Pedals: change the tail rotor's thrust, which holds the fuselage against the main rotor's torque and turns the heading.
Throttle, on the collective: holds rotor speed as the load changes.
Every change on one control needs a correction on another: that is what training teaches.

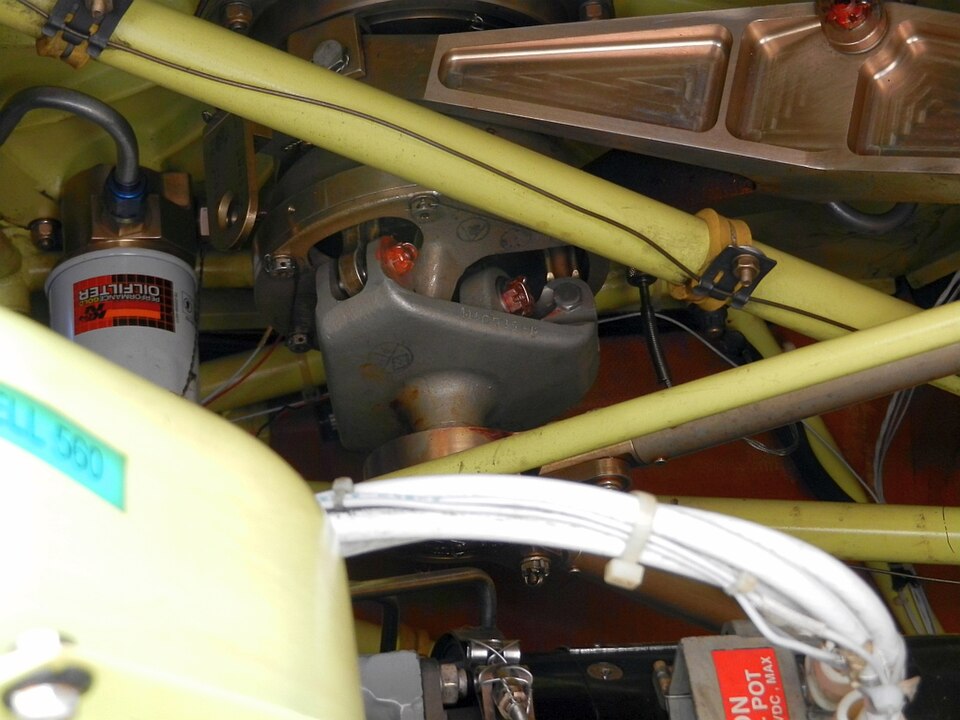

The swashplate of an Enstrom 480 helicopter: rods from the controls tilt and raise it, and links from it set the pitch of each blade.Enstrom 480 swashplate 2011 · 2011-09-01 · Waerfelu · CC BY 3.0 · Commons ↗
✓ Check: You can say which control does what, and which others must be corrected when it moves.
4 — Air traffic control
Where aircraft are many, controllers keep them apart with radio, radar and clearances. In the United States, radar controllers keep aircraft at least 3 miles apart, more at longer range from the radar, or 1,000 ft apart vertically (FAA Order JO 7110.65).
A clearance before entering controlled airspace, and its instructions followed.
A transponder answers the radar with the aircraft's identity and height.
Standard phraseology, in English on international flights, so every instruction has one meaning.

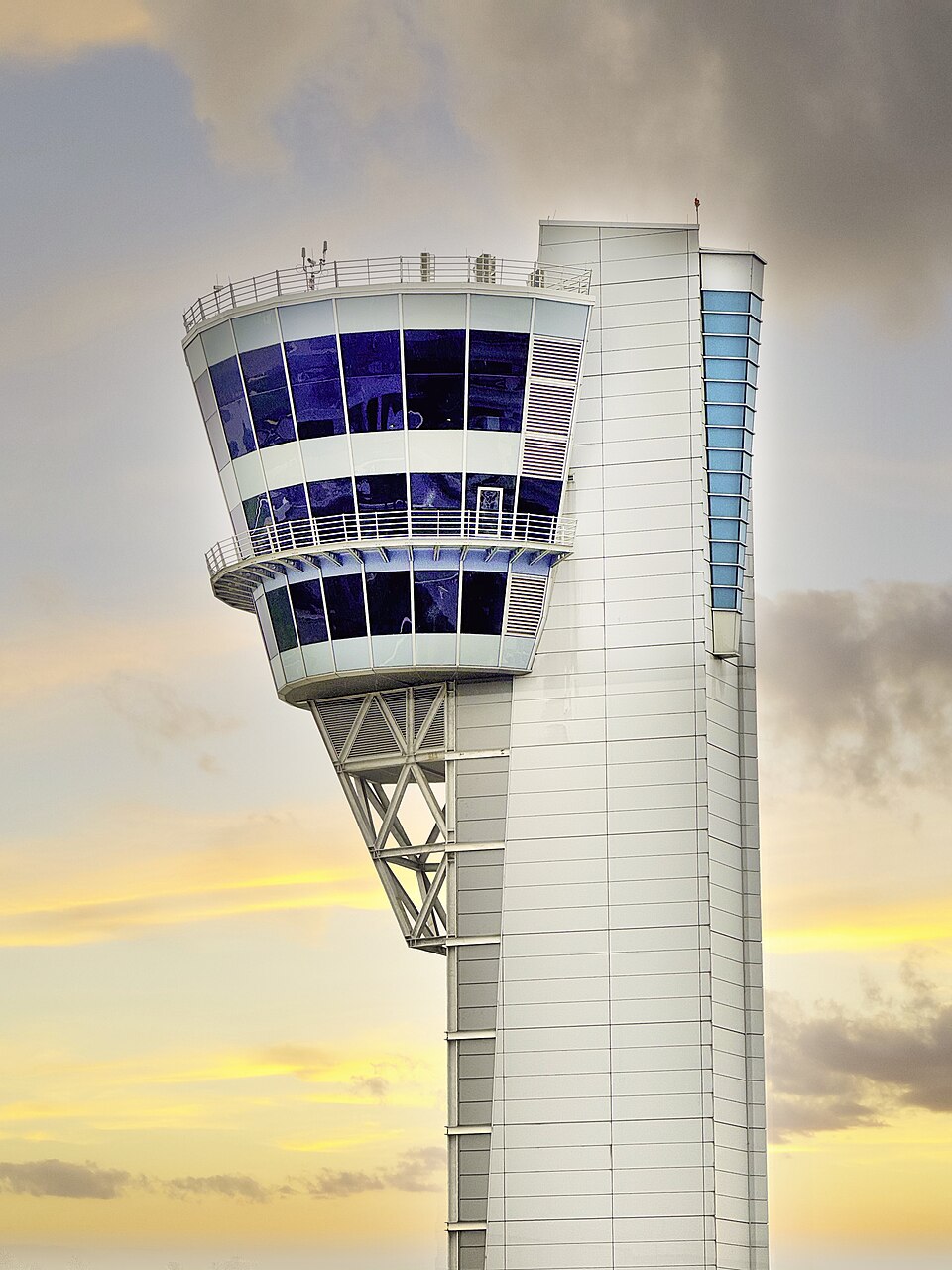

The FAA's air traffic control tower at Philadelphia International Airport, 2025.The FAA air traffic control tower at Philadelphia International Airport · 2025-06-08 15:36:04 · Harrison Keely · CC BY 4.0 · Commons ↗
✓ Check: Every flight in controlled airspace has a clearance, a working radio and transponder, and keeps the separation it is given.
What it looks like
The swashplate of an Enstrom 480 helicopter: rods from the controls tilt and raise it, and links from it set the pitch of each blade.Enstrom 480 swashplate 2011 · 2011-09-01 · Waerfelu · CC BY 3.0 · Commons ↗The FAA's air traffic control tower at Philadelphia International Airport, 2025.The FAA air traffic control tower at Philadelphia International Airport · 2025-06-08 15:36:04 · Harrison Keely · CC BY 4.0 · Commons ↗
Reference sheets
One drawn sheet covering the whole subject at once — the breadth a photograph cannot give, bought at the cost of accuracy. Read them for range and vocabulary, never as the thing you identify from.
Aircraft anatomy: an airliner's parts and systemsA cutaway airliner of the A320 or 737 class, the airframe's frames, stringers and skin, a turbofan in section, the flight control surfaces, the landing gear, the fuel system, and the avionics and other key systems.Illustration, not a photograph. Two corrections. In a turbofan most of the thrust comes from the fan, pushing a large mass of cool bypass air round the core, not from the hot exhaust as panel 3 suggests; the turbofan drawing on this page shows the bypass duct. An airliner's nose wheels steer but have no brakes; the brakes are on the main wheels.Aircraft anatomy: an airliner's parts and systems · 2026-09-29 · Civilization101 Blueprint (AI-generated) · CC BY-SA 4.0Aircraft propulsion: piston to turbofan and electricSix ways to drive an aircraft — piston engine, turboprop, turbojet, turbofan, turboshaft and electric motor — each in section, how each works, its strengths and limits, and an example aircraft for each.Illustration, not a photograph.A piston engine burns less fuel for its power than a small gas turbine, not more; its drawbacks are its weight for the power and, without a turbocharger, the power it loses with height. Modern fighters, like the one drawn over Turbojet, use low-bypass turbofans; the F-86 in the examples is a true turbojet. Electric flight is held back by batteries storing about fifty times less energy per kilogram than jet fuel (electric aircraft).Aircraft propulsion: piston to turbofan and electric · 2026-09-29 · Civilization101 Blueprint (AI-generated) · CC BY-SA 4.0Airport and air traffic systemAn airport's runway, taxiways, apron, terminal and tower, an aircraft's path from gate to take-off, the phases of flight, the five air traffic control units, the layers of airspace, traffic separation, landing aids (ILS, approach lights, PAPI, runway markings) and the systems behind them.Illustration, not a photograph. Correct in outline. Airspace heights differ by country; those drawn are a pattern, not a rule. In the United States, for example, Class A airspace runs from 18,000 ft up to FL600 (14 CFR 71.33). Which unit gives start-up and taxi clearance also varies by airport.Airport and air traffic system · 2026-09-29 · Civilization101 Blueprint (AI-generated) · CC BY-SA 4.0Radar: how it works, types and a simple buildRadio detection and ranging: transmit, reflect, receive; distance R = c × t ÷ 2; speed from the Doppler shift; the radar range equation; eight kinds of radar from pulse and FMCW to weather, air traffic, marine and automotive; a 24 GHz module scanned on a servo; and what radar can watch.Illustration, not a photograph. The physics is right; the build is not what it seems. The AWR1243 is a 77 GHz automotive chip that needs its own processor, not a 24 GHz module for an Arduino, and the LD2410 is a presence sensor that reaches about 6 m and gives no bearing: the 42 m target on the example screen is beyond it. The range equation's longer wavelength holds only at fixed antenna gain; with the same dish, shorter waves reach further in clear air. Transmitting is regulated: use a module sold for your country, unmodified.Radar: how it works, types and a simple build · 2026-09-29 · Civilization101 Blueprint (AI-generated) · CC BY-SA 4.0
How this fails
A cabin that loses pressure at height without oxygen reaching everyone in seconds.
A turbine run beyond its temperature limit.
A helicopter pilot moving one control without correcting the others.
Aircraft in controlled airspace without a clearance, radio or transponder.
How you know it worked
VerificationThe engine is run within its limits; the cabin holds 8,000 ft or lower and oxygen drops to every seat; helicopter pilots are trained on all four controls; every flight in controlled airspace has a clearance and a working radio and transponder.
