Earth charcoal clamp
Turn wood into the fuel that reaches smelting heat — no kiln, no metal, just a stack, a cover and a week of attention.
Home: Fire and fuel, Level 2 · Forge, level 2 of 4 in its track. Serves 3 steps across 3 subjects.
Every build on this site has hazards that injure or kill — quicklime, carbon monoxide, molten metal, collapsing ground. Read the safety notice before starting, and read this build's own failure modes below.
What it is and why this shape
Wood fires reach perhaps 600 °C. That is enough to cook, boil and fire low pottery, and nowhere near enough to smelt metal. Charcoal with forced air reaches 1,200 °C and beyond.
The difference is what you are not burning. Green or seasoned wood spends most of its heat boiling off water and cracking tar. Heat wood in near-absence of air and those volatiles are driven off first, leaving almost pure carbon — which then burns hot and clean because there is nothing left to boil.

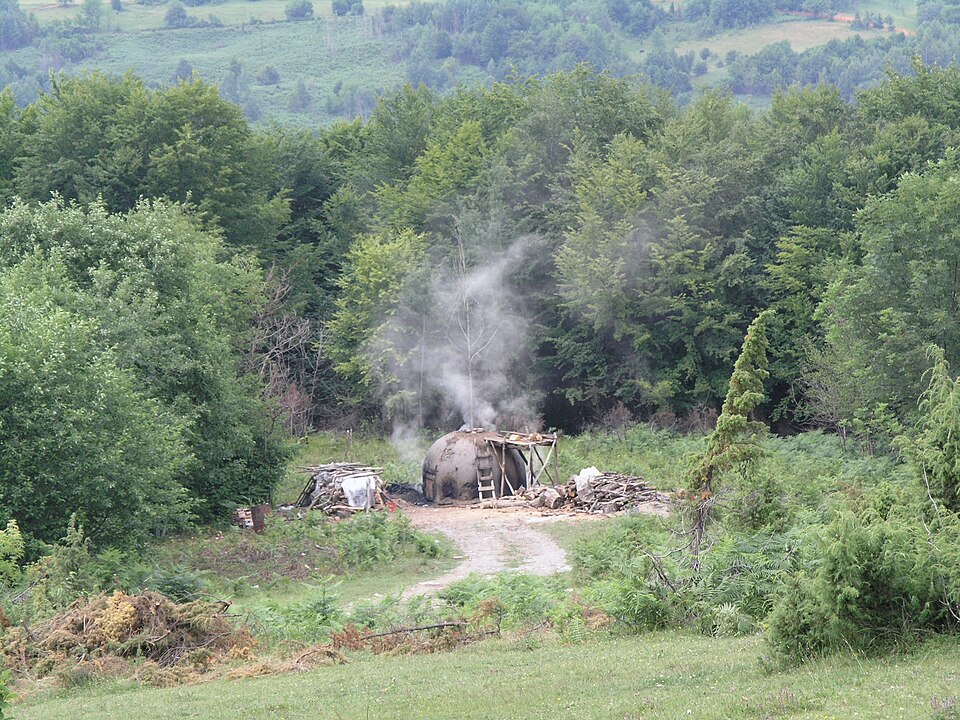

A clamp is the oldest way to do this and needs no built structure at all: a stack of wood, sealed under earth, lit at the centre, and controlled entirely by opening and closing vents in the cover. What it needs instead of materials is attention — someone watching the smoke, day and night, for the better part of a week. That is the real cost, and it is why this fails more often from being left alone than from being built wrong.
Groups that skip charcoal and try to smelt with firewood conclude they have no usable ore. What they lack is fuel.
Keyed parts
| 1 | Chimney of poles (the fause) | A vertical void at the centre. This is the ignition path, not a flue in the ordinary sense. |
| 2 | Inner tier of billets, leaning in | Stacked on end, tilted toward the chimney, as tightly as they will go. |
| 3 | Outer tier, shorter billets | Built up around the inner tier to form the dome shape. |
| 4 | Covering of leaves, bracken or straw | Stops earth falling into the voids and fouling the charcoal. |
| 5 | Earth and charcoal-dust seal, 100–150 mm | The control surface. Every adjustment you make for a week is made here. |
| 6 | Base vents | Opened and closed to steer the burn round the clamp. Your only steering wheel. |
| 7 | Ignition void at the base of the chimney | Filled with dry kindling and embers, then sealed over. |
| 8 | Hearth — level, drained, reused | A good charcoal hearth is used for generations. Level it once, properly. |
Specifications
| Diameter | 4.0 m | 2.5–5 m is the practical range for one or two people to manage |
| Height at centre | 1.8 m | Domed. A flat-topped clamp burns unevenly |
| Wood charged | ≈ 5 t | Seasoned hardwood billets, 0.7–1.0 m long |
| Billet diameter | 60–120 mm | Uniform. Mixed sizes leave voids that let the burn run away |
| Cover thickness | 100–150 mm earth | Over a continuous leaf, bracken or straw layer |
| Burn duration | 4–7 days | Scales with diameter; a 4 m clamp is roughly 5 days |
| Cooling | 2–3 days sealed | Non-negotiable. Opening hot destroys the whole burn in minutes |
| Yield | 20–25% by weight | ≈ 35% by volume. A large woodpile becomes a modest heap |
| Moisture of feedstock | seasoned, < 25% | Green wood wastes most of the burn boiling water and gives friable charcoal |
| Coppice area needed | ≈ 0.5–1 ha per clamp per year | On rotation. This is a crop, not a windfall |

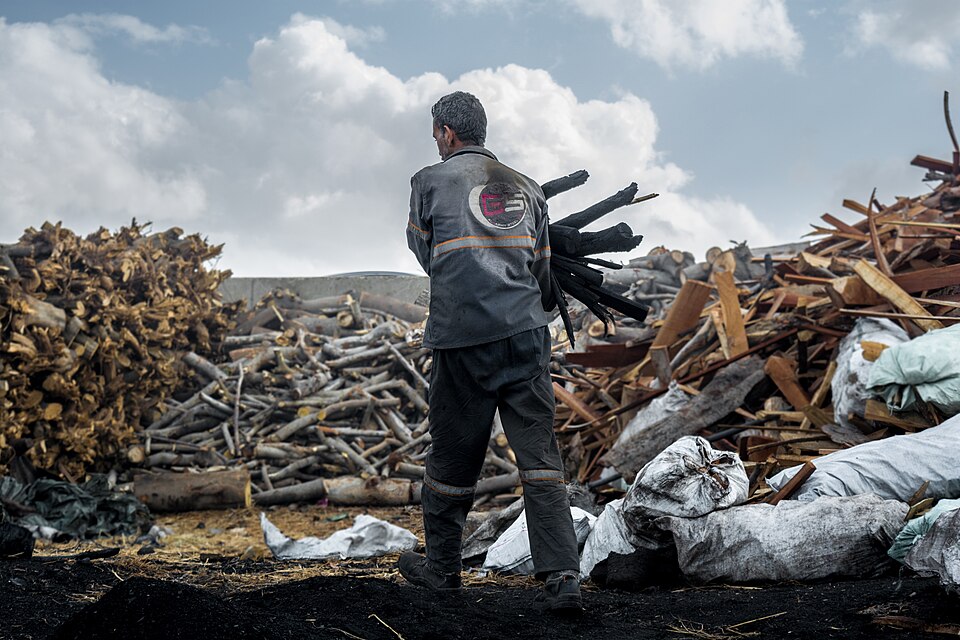

Bill of materials
| Material | Quantity | Notes and substitutes |
|---|---|---|
| Seasoned hardwood billets | ≈ 5 t | Oak, beech, hornbeam, birch. Softwood makes soft, fast-burning charcoal — usable but inferior. |
| Poles for the chimney | 3–4 × 2 m | Withdrawn or burnt in place. |
| Leaves, bracken, straw or turf | ≈ 25 m² | The layer between wood and earth. Without it, earth trickles in and you get gritty charcoal. |
| Earth and old charcoal dust | ≈ 3 m³ | Reused burn dust is the best sealing material there is — fine, inert and already to hand. |
| Dry kindling and embers | small | For ignition down the chimney. |
| Water | several buckets, standing by | For spot-quenching a breakout, not for dousing the clamp. |
Tools: Axe and billhook · Shovel and rake · Long pole for probing and closing vents · Ladder or stack of billets to work the top · Barrow
Construction
Prepare a level hearth
Set the chimney and stack the inner tier
Build the second tier and dome it
Cover with leaves, then earth
Light it down the chimney
Read the smoke and steer the burn
Patch breakouts immediately
Seal completely at blue smoke
Let it cool. Do not look.
Draw, screen and store dry
Tolerances that matter
| Dimension | Target | Why it matters |
|---|---|---|
| Cover thickness | 100–150 mm | Thin, it burns through into a bonfire. Thick, the burn suffocates and you get part-charred wood. |
| Billet uniformity | 60–120 mm | Mixed diameters leave voids where the burn accelerates out of control. |
| Feedstock seasoning | seasoned, < 25% moisture | Green wood wastes the burn on evaporation and gives soft, friable charcoal. |
| Cooling period | ≥ 2 days sealed | Hot charcoal re-ignites on air contact. This single rule protects the whole week's work. |
| Response to a breakout | immediate | Minutes decide between a patch and losing the clamp. |
How this fails
How you know it worked
Scaling and variants
Smaller: a pit burn — the same process in a dug pit with a cover of turf and earth — needs no stacking skill and suits a first attempt or a few sacks of fuel. Yield is lower and the product dirtier, but it teaches you to read smoke, which is the transferable part.
Better yield: a retort — wood sealed inside a metal or masonry chamber, heated from outside — converts 30–35% by weight instead of 20–25%, because none of the charge is burnt to supply the heat. It also lets you condense the volatiles that a clamp throws away, giving wood tar, pitch, acetic acid and wood alcohol, all of which are genuinely useful. It needs a vessel you cannot make until tier 2 metalwork or good brick, which is why the clamp comes first.
Scaling up: run several clamps in rotation on the same hearth rather than one large one. Larger clamps are disproportionately harder to control and a single failure costs proportionally more.
