Sustainable farming

Keep the soil covered, feed it, water the roots and fight pests without poisoning yourself: the modern practice that needs knowledge rather than machinery.

Home: Crops and soil, Level 1 · Foothold, level 2 of 7 in its track. Serves 7 steps.

Most of what makes farming last is knowledge, not equipment: cover on the soil, a legume in the rotation, compost that has been hot, nutrients matched to what the crop takes up, water put at the root, and pests watched before they are sprayed. Every practice here works with hand tools, which is why each sits beside the early farming steps as well as on this page. The numbers are from FAO, the FAO/WHO Code of Conduct on Pesticide Management, WHO, the USDA, icipe and ICRISAT. Each one moves with climate, soil and crop: start from it, then check it against a local extension service.

This guide is partial. It covers soil cover, rotation, compost, nutrients, pests and pesticide safety, water, trees on the farm and what to measure. Irrigation engineering and drainage are in irrigation, reading the soil in the soils guide, saving and testing seed in the seeds guide, drying and storing grain in food preservation, and biogas in energy. Greenhouses, hydroponics, vertical farming and fish ponds are planned on the roadmap.

Cover the soil and disturb it less

FAO defines conservation agriculture by three principles, each with a limit you can measure:

  • Minimum soil disturbance: the seed and fertiliser go straight into the ground through a slot or hole, made with a pointed stick, a jab planter or a no-till drill. The disturbed strip must be under 15 cm wide or under 25 % of the cropped area, whichever is less. Strip tillage within those limits counts; ploughing the whole field does not.
  • Permanent organic cover: crop residue, mulch or a living cover crop over at least 30 % of the ground, measured just after sowing. FAO grades it 30–60 %, 60–90 % and over 90 %; below 30 % is not conservation agriculture.
  • Diversity: a rotation or mixture of at least three different crop species.

Covered soil takes rain in instead of shedding it, stays cooler, and does not blow or wash away. To measure the cover, stretch a cord with 100 evenly spaced knots diagonally across the rows just after sowing, and count the knots that sit over residue: that count is the percentage covered.

The costs are real. Without ploughing, weeds must be pulled or smothered, especially in the first years; residue left for cover is residue not fed to animals; and in cold, wet soils a thick mulch can delay sowing.

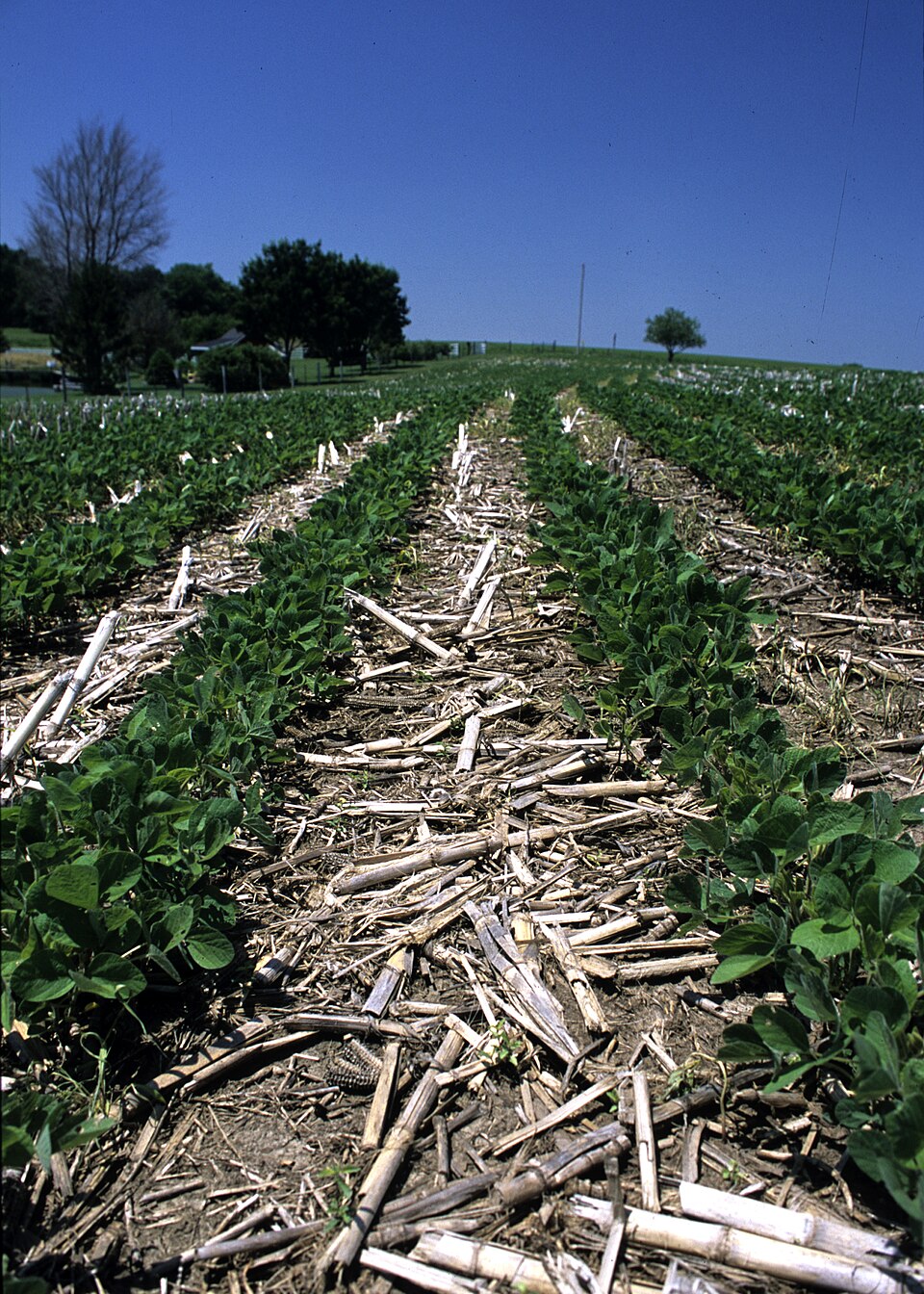

Soybeans sown straight into last year's maize residue, with no ploughing: the stalks keep the soil covered between the rows. Soybeans in no-till field · 4 October 2011, 13:15:18 · Photo by Lynn Betts, USDA Natural Resources Conservation Service. · Public domain · Commons ↗

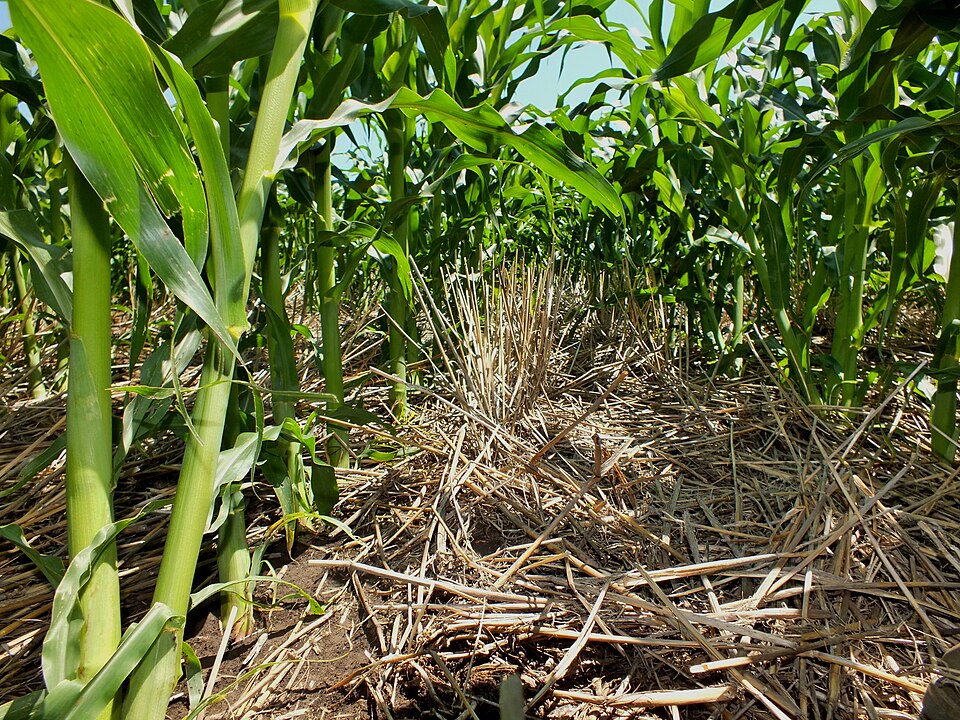

Maize growing through the residue of the previous crop: the ground between the rows is never bare. Corn in Residue with Healthy Soil (9314025147) · 2013-07-10 12:33 · USDA NRCS South Dakota · Public domain · Commons ↗
Sustainable farm: the whole system One farm drawn as a system: soil testing, crop planning, water, nutrients, pest management, sensors and drones, biodiversity, protected cropping, harvest and storage, the return of residues and manure, and the measures that show whether it is working. Illustration, not a photograph. Not to scale, and not a plan to copy: take the numbers from the text of this guide. The tractor labelled “minimum tillage” is pulling a full-width harrow over bare ground, which is ordinary tillage; conservation agriculture disturbs only slots under 15 cm wide or under 25 % of the field. The harvest strip leaves out drying: grain goes into store only below about 13 % moisture (grain). “Use manure safely” means composted hot, or raw manure worked in 90–120 days before harvest (compost). Drones, sensors, solar pumps, greenhouses and hydroponics are drawn but not taught on this site. The lettering on the crates means nothing. Sustainable farm: the whole system · 2026-09-28 · Civilization101 Blueprint (AI-generated) · CC BY-SA 4.0

Rotate: at least three crops, one of them a legume

Do not follow a crop with itself, or with another of the same family. Tomato, potato, pepper and aubergine share their soil-borne diseases, as do cabbage, turnip and mustard: to the disease they are one crop. A rotation starves the pests and diseases that build up under one crop, and a legume in it feeds the next: clover, vetch, beans, peas and lupins fix nitrogen from the air through their root nodules, about 30–40 kg of nitrogen for every tonne of dry top growth, roots included (Peoples and others, 2009). That puts a good legume ley on the order of 50–200 kg per hectare per year.

Three things cut what the next crop gets: soil already rich in nitrate, which the legume takes up instead of fixing; harvesting the seed, which carries much of the nitrogen away; and carrying off the straw. A ley or green manure left on the field gives the most. The procedure, with the four-course rotation below, is in open ground and hold fertility.

YearCropWhat it does for the next
1Cereal (wheat, maize, sorghum)Food; leaves straw for cover
2Root crop (potato, cassava, turnip)Weeded hard, which cleans the ground
3CerealUses the cleaned ground
4Legume ley (clover, vetch, beans)Rests the ground and adds nitrogen

Compost hot

Heat is what makes compost safe. A pile that stays warm kills the pathogens in manure and waste; a cool one only rots them.

  • Mix about 25 to 40 parts carbon to one of nitrogen (the USDA NRCS composting standard); Cornell puts the ideal near 30:1. Dry, brown, woody material is carbon; fresh, green, wet material and manure are nitrogen. Too little carbon and nitrogen is lost as ammonia, and it smells; too much and the pile stays cool.
  • Keep it damp, like a wrung-out sponge, and turn it to let air in.
  • Hold it at 55 °C or more for at least 15 days, turning at least five times, in a windrow; a closed bin or aerated static pile needs 3 days at 55 °C. That is the pathogen-reduction standard for manure compost in the US organic rule (7 CFR 205.203) and for sewage sludge (40 CFR 503). Other countries set their own, and where a local rule exists it governs. Measure it with a thermometer pushed into the middle.

Compost made from human waste follows the sanitation guide and its longer rules.

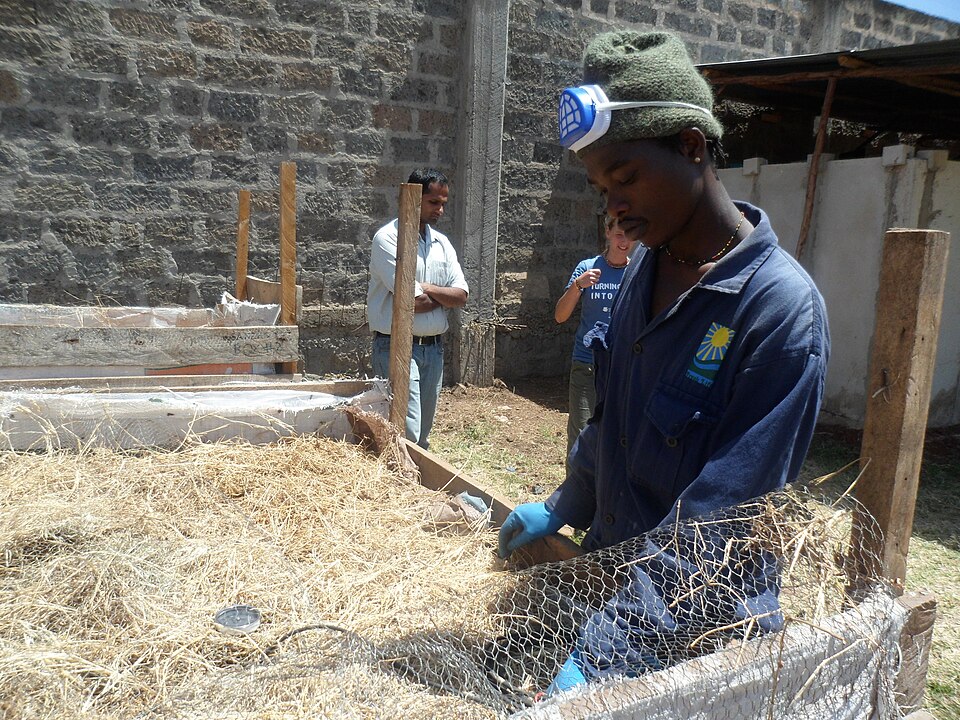

Reading the temperature inside a straw-covered compost bin: the thermometer, not the smell, says whether it is hot enough. Measuring temperature in compost pile (covered with straw) (6879864493) · 2012-02-12 08:58:47 · SuSanA Secretariat · CC BY 2.0 · Commons ↗
Raw manure on food eaten rawManure, and compost that never got hot, can carry the bacteria behind severe food poisoning, among them E. coli O157 and Salmonella (see micro-organisms). Keep them off leaves and roots that are eaten without cooking. Where raw manure goes on a food crop, the US organic rule requires it to be worked into the soil at least 120 days before harvest if the edible part touches the soil, and 90 days if it does not (7 CFR 205.203).

Feed the crop: right source, rate, time and place

Test first: texture, pH and the leaf signs of a shortage are in the soils guide. Then work to the 4Rs of the Global 4R Nutrient Stewardship Framework (International Fertilizer Industry Association, 2009), which the USDA's nutrient-management standard also follows. Nutrient the crop does not take up is not banked for next year: nitrogen leaches or goes to the air, and phosphorus leaves with eroded soil.

The RWhat decides itIn practice
Right sourceWhat the soil lacks, in a form the crop can useCompost and manure for a slow supply and organic matter; a legume for nitrogen; wood ash for potassium and to raise pH (acidity); bone, burnt and crushed, for phosphorus; mineral fertiliser where there is some
Right rateWhat the crop will take up, less what the soil already suppliesSet it from a soil test and a realistic yield, not from the size of the sack. Anything above the crop's need is lost
Right timeWhen the crop takes it upNitrogen in two or three splits, most of it just before the fastest growth rather than all at sowing; never ahead of heavy rain or on frozen or waterlogged ground
Right placeWhere the roots can reach itIn the planting hole or a band beside the row, not scattered over the whole field. Sahel microdosing: 6 g of NPK 15-15-15, or 2 g of DAP, per planting hill at sowing, about 60 or 20 kg a hectare at 10,000 hills; reported yield gains range from 4 % to 144 % (Bielders and Gérard, 2015)

Pests: prevent, watch, then treat

The FAO/WHO Code of Conduct defines integrated pest management as using every method available so that pesticides are kept to what is economically justified, and the healthy crop comes first. In practice it is a ladder, climbed only as far as needed:

  1. Prevent: rotation, clean seed, resistant varieties, sowing at the right time, healthy soil.
  2. Watch: scout on a fixed round, at least weekly while the crop grows and more often in the stages when a pest strikes. Count what you find on a fixed number of plants, and act only when the count passes the action threshold, the level at which the damage would cost more than acting. Thresholds are set per crop and pest; a local extension service publishes them.
  3. Use nature and your hands: pick off, trap, and protect the insects and birds that eat pests. Push-pull, below, is the best-proven case.
  4. Treat last, with the least hazardous product, on the patch that needs it rather than the whole field.

Push-pull, developed by icipe: Desmodium drilled between the maize rows repels stemborer moths and makes the parasitic Striga weed germinate and die; three rows of Napier or Brachiaria grass round the plot attract the moths away. Farmers using it harvested about 4 t/ha of maize against 1.5 t/ha without it, and fall armyworm damage fell by more than 80 %.

Weeds climb the same ladder, and without ploughing they are the main extra work. Prevent: clean seed, and no weed allowed to set seed. Smother: mulch, a cover crop, close spacing. Remove early: what counts is the critical period, the stretch when weeds cost yield. In maize it ended, on average, at the 14-leaf stage, and began as early as the 3-leaf stage (Hall and others, 1992). Hoe or pull through that window; weeds that come up after it cost little yield, but pull any that are about to seed. Herbicide comes last, under the same rules as any pesticide.

A push-pull plot, the corner in plan Fig 1
Three rows of grass 75 cm apart round the plot, a 1 m path, maize rows 75 cm apart with hills 30 cm apart, and Desmodium between the rows.

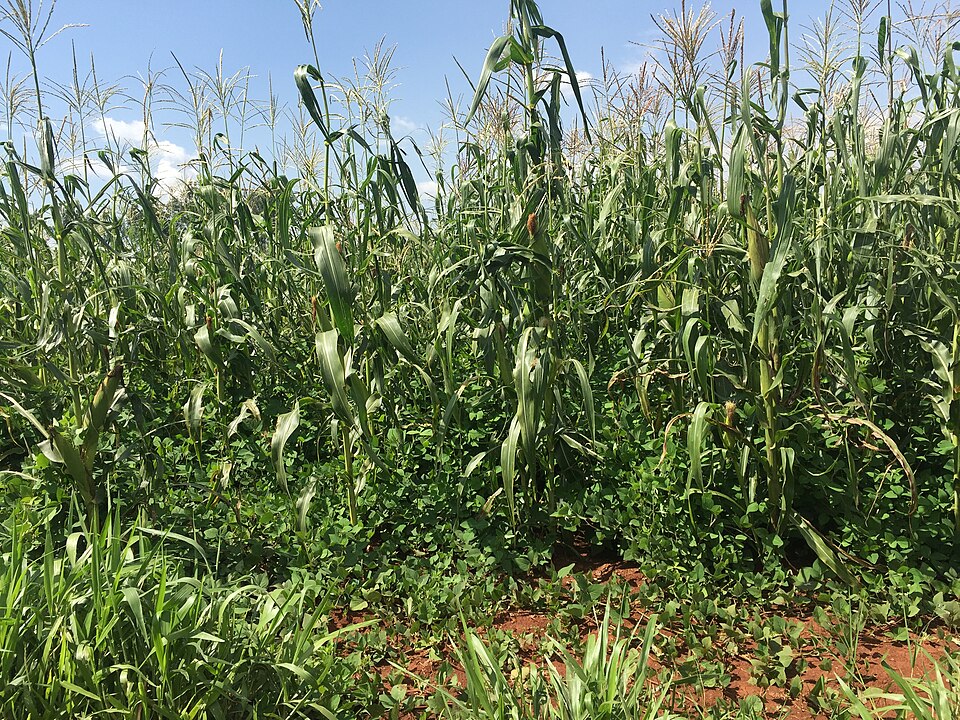

A push-pull field at icipe, Mbita, Kenya: the low green cover under the maize is Desmodium. Maize-push-pull-farm-at-ICIPE, Mbita Point, Kenya · 2016-12-08 14:20:42 · Aneth David (SLU) · CC BY-SA 4.0 · Commons ↗

If you use a pesticide

A pesticide is a poison, and the person spraying it takes the first dose. Use only a product registered in your country for that crop and that pest, at the rate on its label. WHO classifies every active ingredient by its acute hazard, the dose that kills half of a group of rats. The class says nothing about cancer, birth defects, or harm to water, fish and bees; those are judged separately:

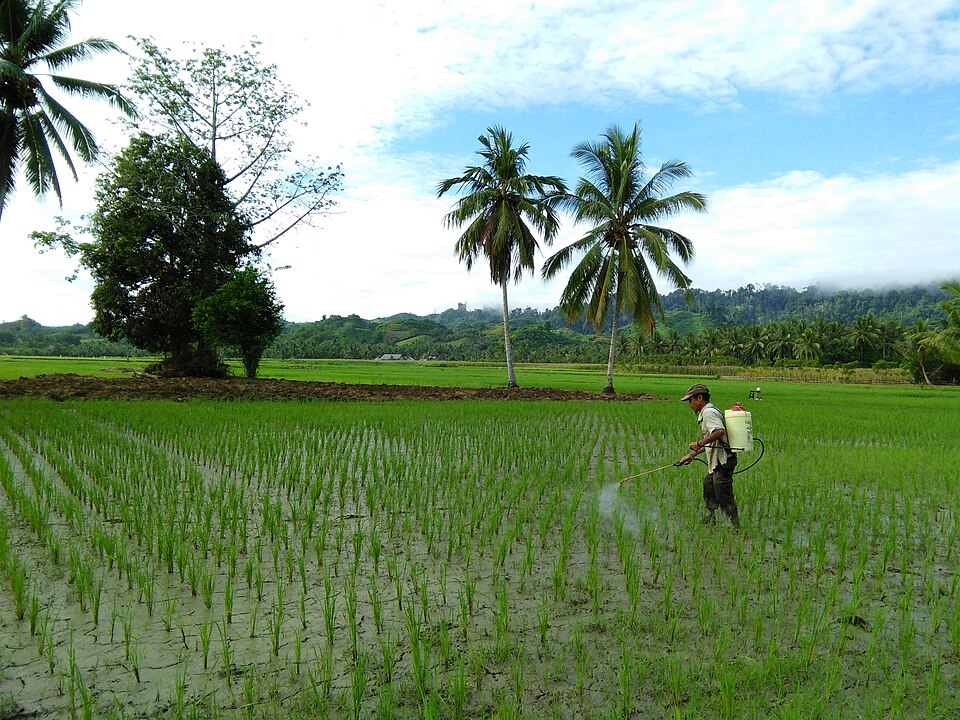

Spraying rice in Sulawesi, 2017: bare hands and face, and the spray drifting. The protection this job needs is exactly what is missing here. Sulawesi farmer rice agrochemical 1 · 26 May 2017 (according to Exif · T. R. Shankar Raman · CC BY-SA 4.0 · Commons ↗
WHO classHazardOral LD50, mg/kgSkin LD50, mg/kg
IaExtremely hazardousunder 5under 50
IbHighly hazardous5–5050–200
IIModerately hazardous50–2,000200–2,000
IIISlightly hazardousover 2,000over 2,000
UUnlikely to present acute hazard5,000 or more—
Do not use highly hazardous pesticidesFAO and WHO name eight criteria for a highly hazardous pesticide. A formulation in WHO Class Ia or Ib is one. So is an ingredient that is a GHS Category 1A or 1B carcinogen, mutagen or reproductive toxicant, one listed under the Stockholm or Rotterdam Conventions or the Montreal Protocol, and one with a record of severe or irreversible harm. The Code also says pesticides that need protective equipment which is uncomfortable, expensive or not readily available should be avoided, especially by small farmers in hot climates (Article 3.6). If you cannot wear what the label demands, do not use the product.
Storage, spraying and waitingKeep pesticides in their original, labelled containers, locked away from food, water, animals and children, and never in a drink bottle — decanting into one is a classic route to accidental poisoning. Read the label every time and wear what it names; wash hands and face before eating. Spray only in a steady breeze of about 5–13 km/h blowing away from houses, water and other crops (Pesticide Environmental Stewardship); the label's own wind limits override this. Never spray in dead calm: fine droplets hang in still air and drift far. Smoke that rises and then spreads sideways, or fog lying in hollows, means an inversion; wait. Keep spray and rinse water out of wells, streams and fish ponds. Wait out the re-entry interval before anyone walks into the sprayed crop and the pre-harvest interval before picking; both are on the label. Poisoning and its first aid are in poisons.
ResistanceA pest sprayed again and again with one kind of product evolves resistance to it. Find the mode-of-action group on the label: IRAC numbers for insecticides, FRAC for fungicides, HRAC for herbicides. Alternate groups, and do not spray the same group on successive generations of a pest (IRAC).

Water at the root

How much of the water you apply reaches the roots depends on the method. FAO gives indicative field application efficiencies. Layout, soil and upkeep move them a long way, so measure your own: water delivered against the crop's need.

MethodReaches the rootsApplied to deliver 50 m³ to a hectare
Surface (basin, furrow, border)about 60 %about 83 m³
Sprinklerabout 75 %about 67 m³
Dripabout 90 %about 56 m³
What the numbers meanA crop using 5 mm a day needs 50 m³ per hectare per day at the roots, since 1 mm over a hectare is 10 m³ (irrigation). Delivering it by furrow means applying about 83 m³; by drip, about 56 m³. Mulch cuts the loss from the soil surface whatever the method, and watering by the moisture in the root zone rather than by the calendar avoids both waste and waterlogging.
How much the crop needs, stage by stageFAO's standard method (Irrigation and Drainage Paper 56): crop water use = Kc × ETo. ETo is what a reference grass would use that day, from a weather station or an evaporation pan. Kc is the crop's factor and follows its growth: maize 0.3 at establishment, 1.20 at mid-season, 0.35–0.60 at harvest; dry beans 0.4, 1.15 and 0.35. Drain as well as water: irrigating without drainage leaves salt in the topsoil (irrigation).

Trees on the farm

Trees on farmland can shelter crops, feed animals, fix nitrogen and hold soil, and they yield timber, fruit and fuel on the same ground.

  • Windbreaks: a row of trees slows the wind for up to about 30 times its height downwind, and stops soil blowing for about 10–20 times (Utah State University Extension). For crops it works best at about 40–60 % density; below about 30 % it does little (USDA National Agroforestry Center). Put it across the prevailing wind. These are design rules of thumb: species, gaps and wind direction shift them.
  • Alley cropping: crops or pasture grown in the alleys between rows of trees.
  • Living fences and fodder trees along boundaries.

Trees compete with crops for light and water close to their rows, so leave the alleys wide enough for the crop and prune roots or branches where they encroach.

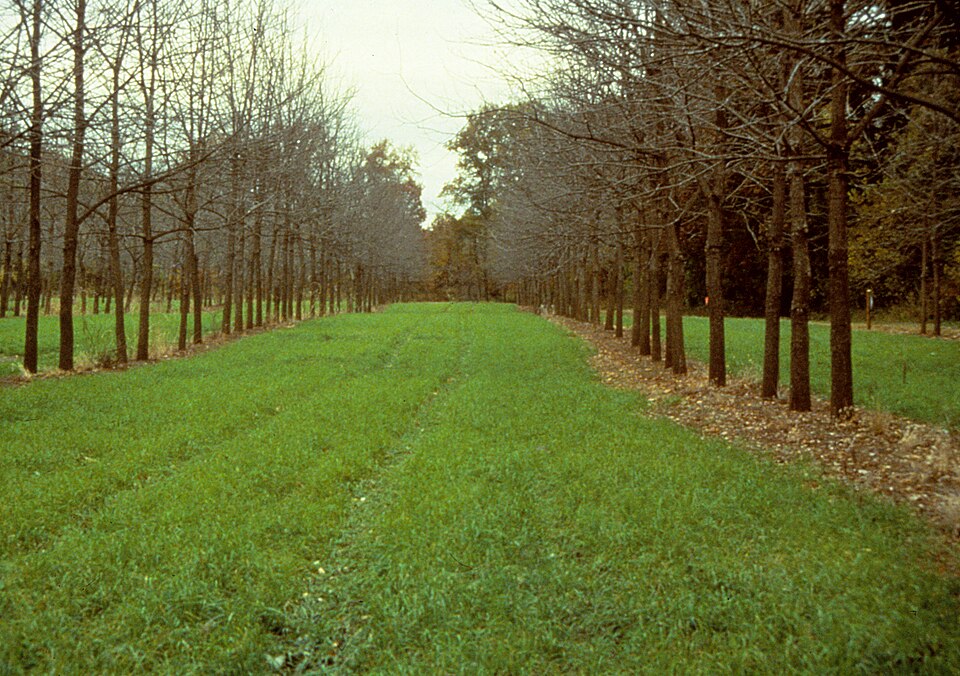

Alley cropping in Missouri: rows of black walnut with orchard grass grown in the alleys between them. Alley cropping walnuts (26285902856) · 2016-04-08 11:53 · National Agroforestry Center · CC BY 2.0 · Commons ↗

Measure whether it is working

A practice is working when these numbers improve, or hold, year on year. Write them down every season, field by field; the oldest field shows a decline first.

MeasureHowWhat to aim for
YieldWeigh the harvest from a marked area, the same area every yearNo fall over three harvests
Soil coverThe knotted cord, just after sowing30 % or more, FAO's floor
Water productivityKilograms harvested per m³ of water the crop usedIrrigated crops measured worldwide: wheat 0.6–1.7 kg/m³, rice 0.6–1.6, maize 1.1–2.7 (Zwart and Bastiaanssen, 2004). Near the low end, water, nutrients or management are holding the crop back
Nitrogen use efficiencyNitrogen leaving in the harvest ÷ nitrogen put in: fertiliser, manure, compost and legume fixation50–90 % (EU Nitrogen Expert Panel). Below 50 %, nitrogen is being lost; above 90 %, the soil is being mined
Soil organic matterA laboratory test, repeated on the same field in the same monthHolding or rising

Build the gear

Where to go next

This page covers what you are most likely to meet. It is not a field guide, and on identification that difference can kill you. These are the works that go further — chosen because they can be held offline.

manual Conservation agriculture FAO — free The three principles, with FAO's practice and country material. manual International Code of Conduct on Pesticide Management FAO and WHO, 2014 — free PDF The definitions of integrated pest management and highly hazardous pesticides, and Article 3.6 on protective equipment. manual The WHO Recommended Classification of Pesticides by Hazard WHO, 2019 edition — free The hazard class of every active ingredient, and how to find the class of a formulation. manual A step-by-step guide to vegetable-integrated push-pull icipe — free PDF Plot size, row spacings, planting and management of push-pull, with photographs. manual Irrigation Water Management: Irrigation Scheduling FAO training manual no. 4 — free Crop water needs and field application efficiency by method. manual Windbreak density: rules of thumb for design USDA National Agroforestry Center — free PDF How dense a windbreak should be, and how far downwind it protects. manual Crop evapotranspiration: guidelines for computing crop water requirements FAO Irrigation and Drainage Paper 56 — free The standard method for crop water need: ETo, and the crop coefficient Kc for each crop and growth stage. manual Identification of highly hazardous pesticides FAO Pesticide Registration Toolkit — free The eight FAO/WHO criteria, with the lists each one draws on. manual Mode of action classification Insecticide Resistance Action Committee — free The insecticide group numbers to alternate, and resistance-management guidance.

Still to come

Illustrations carry a technique further than prose, but some things only move well. Recorded here rather than left implicit.

  • A photograph of a jab planter or planting stick sowing through residue.
  • A photograph of a trap or sticky board used for scouting pests.
  • Crop-by-crop tables of pests and their thresholds are out of scope; a regional extension service holds them.
