Civilization101Blueprint

Charcoal

Throw away two-thirds of the energy in a pile of wood and what is left is the only fuel that reaches the temperature of molten iron.

Home: Fire and fuel, Level 2 · Forge, level 2 of 4 in its track. Serves 3 steps across 3 subjects.

Charcoal is a bad bargain that every metal-working civilization has made.

Dry wood holds about 18–19 MJ per kg. Good charcoal holds about 30 MJ per kg — but an earth clamp turns only 10–20% of the wood's dry weight into charcoal. Run the numbers: 1 kg of wood, 18.5 MJ, becomes 0.2 kg of charcoal holding 6 MJ. Roughly two-thirds of the energy is released as smoke and heat during the burn and lost.

What is bought with that loss is temperature. Wood burns with a lot of its energy spent driving off water and volatiles, and with flame and smoke. Charcoal is nearly pure carbon: it burns without flame, packs into a dense bed, and with forced air from a bellows reaches 1,200–1,300 °C — the heat of a bloomery smelting iron and a forge welding it. Wood alone cannot get a furnace there.

It also stores indefinitely, weighs a fifth of the wood it came from, and does not rot. The charcoal clamp build has the dimensions. This page is choosing a method, reading the burn by its smoke, and the ways it kills.

The wood decides the charcoal

Seasoning first. Fresh-cut wood is 45–60% water by weight. Every litre of that has to be boiled off inside the clamp before carbonisation starts, using wood that would otherwise have become charcoal. Season wood under cover for 6–12 months to below about 25% moisture. Wet wood gives a lower yield, a longer burn, and more half-carbonised pieces.

Species. Dense hardwoods — oak, beech, hornbeam, ash, hickory, many acacias and eucalyptus — give dense, strong charcoal that holds its shape under the weight of a tall furnace charge. That strength matters in a bloomery, where a crushed charcoal bed chokes the air blast. Softwoods — pine, spruce — give light, friable charcoal that lights easily and burns fast; many smiths prefer it for the forge, and it is poor for smelting.

Size. Billets of roughly uniform size carbonise evenly. Split anything thicker than about 15 cm; cut lengths to fit the method, commonly 0.5–1 m for a clamp. A pile of mixed sizes finishes with the small pieces burnt to ash and the large ones still raw at the core.

Where it comes from. Charcoal making stripped forests across Europe, the Middle East and now much of Africa. Coppicing — cutting broadleaf trees at the base and letting them regrow as multiple poles — produces charcoal-sized wood on a 7–20 year rotation indefinitely from the same stools. It is how charcoal burning was sustained for centuries.

An earthed charcoal clamp part-way through its burn. Clamp in Tharandt 008 · 2020-06-09 11:00:00 · Loracco · CC BY-SA 4.0 · Commons ↗

Methods compared

Every method does the same thing — heats wood with too little air to burn it — and differs in how well it controls the air, and how much of the wood is burned to heat the rest.

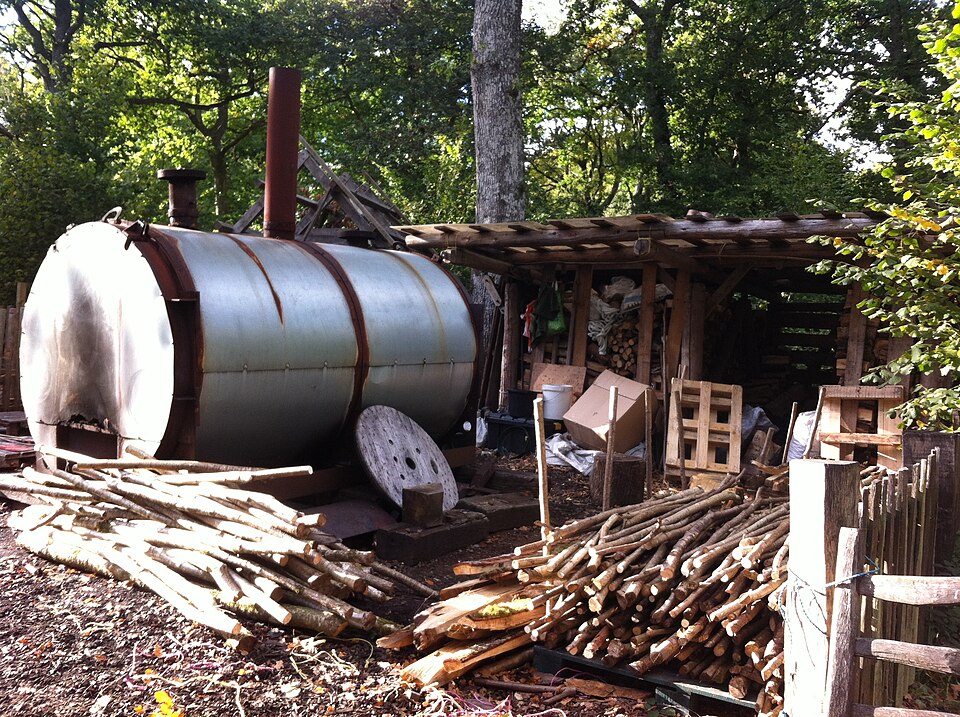

A steel charcoal retort with seasoned billets stacked ready. The wood is sealed inside and heated by burning its own gases, roughly doubling the yield of an earth clamp. Charcoal retort, Westonbirt Arboretum - geograph.org.uk - 6859721 · 2020-09-25 · A J Paxton · CC BY-SA 2.0 · Commons ↗
MethodYield, by dry weightBurn + coolingControlWhen it is the right choice
Pit kiln~10–15%3–7 days + 2–3PoorSmall batches, well-drained ground, no tools beyond a spade
Earth clamp — a mound covered in soil~10–20%5–10 days + 3–10Moderate, through vents in the coverThe standard low-tech method. Scales to tens of cubic metres of wood. See the build
Brick or steel drum kiln~20–25%1–3 days + 1–2GoodA fixed site with repeated burns; cheaper in labour than rebuilding clamps
Retort — wood sealed in a vessel, heated from outside, its gases piped back to burn underneath~25–35%Hours to a dayBestWhen wood is scarce or smoke matters. It burns its own volatiles as fuel instead of releasing them
The first-attempt ruleStart with a small clamp of one or two cubic metres. A large first clamp is days of work that ends, more often than not, in a pile of ash or a mound of brown half-burnt wood. The skill is in reading the smoke and managing the vents, and a small burn teaches it in a week.

Reading the burn by its smoke

Nobody can see inside a clamp. The smoke from each vent tells you what is happening in the wood beneath it, and managing the vents by smoke colour is the whole skill of charcoal burning.

The burn spreads from where it was lit — usually the top of the central flue — downward and outward. The collier opens vents around the base and progressively closes each as the smoke from it changes.

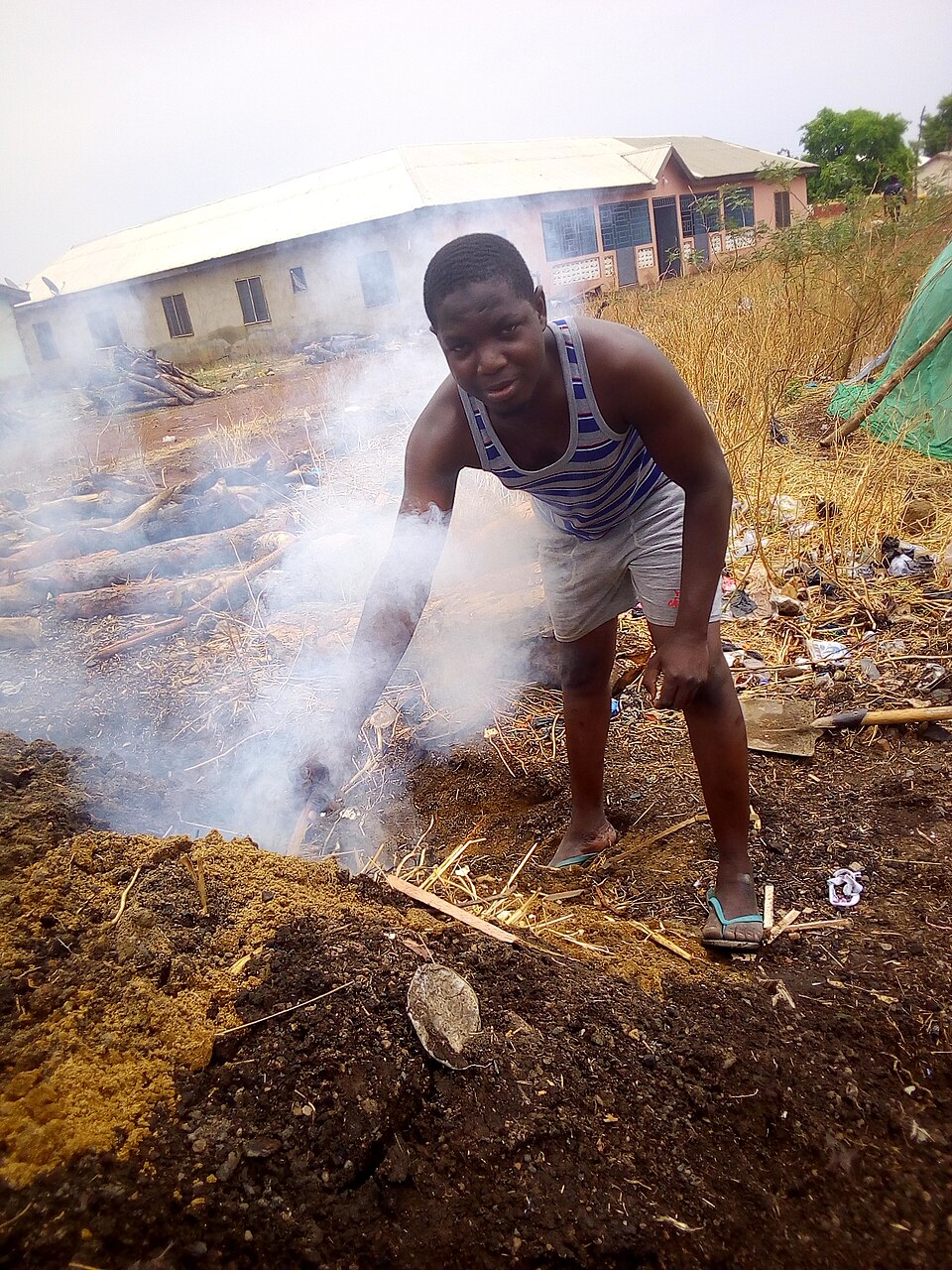

Sealing a leak in an earth-covered clamp, Northern Ghana. Any hole that draws air burns wood to ash. Covering of leakage in the production of charcoal in Northern Ghana · 2020-03-20 11:28:31 · Dnshitobu · CC BY-SA 4.0 · Commons ↗
SmokeWhat is happening underneathRough temperatureWhat to do
Thick, white, damp-smellingWater boiling out of the woodBelow ~200 °CLeave the vents open. This stage is the slowest, and slower still with wet wood
Yellow to brown, acrid, oilyPyrolysis — tars, acids and volatile gases driving off~280–400 °CHold steady. Seal any crack in the cover that shows flame
Thin, blue, almost clearCarbonisation finished in the zone below this vent400–500 °C and aboveClose that vent with earth. Open the next ring of vents lower down
Flame at the surface, or heat with no smokeAn air leak — finished charcoal is burning to ash—Seal it immediately with wet earth or turf
Never open a clamp that is still warmWhen every vent has gone blue and been closed, the burn is finished — and the charcoal inside is still hot enough to reignite the moment air reaches it. Seal the whole clamp and leave it to cool — 3 to 10 days depending on size. Test by pushing a hand into the cover soil near the base: if it is warm, wait. Opening early turns a week of work into a bonfire in minutes.

Drawing, sorting and storing

Draw in the morning, so any flare-up is visible and there is a whole day to deal with it. Open one side, rake the charcoal out, and have water and wet earth ready for pieces that begin to glow.

Sort as you draw:

  • Good charcoal is black with a glossy fracture, lighter than the wood, and rings with a metallic clink when two pieces are struck together.
  • 'Brands' — pieces still brown inside, that smoke when lit — are under-carbonised. Set them aside for the next burn; they are what makes a forge fire smoky.
  • Fines and dust are usable in a smithing forge and as a soil amendment, and poor in a furnace, where they block the air.

Let it breathe before bagging. Freshly made charcoal adsorbs oxygen and water vapour, and that process releases heat. Charcoal bagged or heaped straight from the kiln can heat itself and ignite hours later, inside the store. Spread it out and leave it exposed to air for at least 24–48 hours before bagging.

Store it dry. Damp charcoal is harder to light and burns smokily. It does not rot and keeps for years under cover.

Coke. Coal with the volatiles driven off, and the fuel that made cheap iron possible. Koks Brennstoff · 10 December 2006 (original upl · Stahlkocher · CC BY-SA 3.0 · Commons ↗

The ways charcoal burning kills

  • Carbon monoxide. A clamp produces enormous volumes of it throughout the burn and cooling, and so do bags of warm charcoal in a closed space. Smoke from the vents disperses outdoors; the danger is any enclosed or sheltered space downwind — a hut, a tent, a hollow. And charcoal burned for warmth indoors is the classic CO death: it gives almost no smoke to warn anyone. See the carbon monoxide section of the fire guide.
  • Falling into the clamp. A collier climbing on a clamp to seal a leak can break through the cover into a bed of burning charcoal. Never stand on a clamp — use a long-handled shovel from the ground, or a board laid across to spread the weight.
  • Self-heating in storage — see above.
  • Forest fire. Clear the ground around a clamp to bare soil for several metres, keep water on site, and never leave a burn unwatched in dry or windy weather.
  • Burns while drawing. Heavy leather gloves and boots, and water within reach.
A charcoal layer does not make water safeCharcoal is often built into home water filters and credited with purifying them. Ordinary charcoal does not kill pathogens. Even activated carbon — a different, steam-treated product — only adsorbs some chemicals, tastes and odours. A filter containing charcoal still needs the water to be boiled or disinfected afterwards. See the water guide.

What charcoal is for

The reason to make charcoal is almost always the next step.

A forge fire in use: a small, deep heart of burning fuel, not a spread bed. Nailsmithing 01 · 2020-10-05 13:44:51 · Kritzolina · CC BY-SA 4.0 · Commons ↗
A clay bloomery shaft after a smelt, with the slag pit in front of the tap. Forge Lou Foc - Bas fourneau - 01 - 2016-05-14 · 2016-05-14 12:06 · MathieuMD · CC BY-SA 4.0 · Commons ↗
Energy: fire and fuel Seven panels: the fire triangle and a wood fire, charcoal made in an earth clamp, a charcoal forge with bellows, how coal forms and how coke is made from it, crude oil and its fractions, the fuel pathway from biomass to petroleum, and a table comparing wood, charcoal, coal, coke and petroleum. Illustration, not a photograph. Three corrections. Charcoal is not a medium-energy fuel. At about 29.5 MJ per kg it holds more than typical bituminous coal (25.8) and about as much as coke (28.2), by the IPCC's default values. The energy density increases arrow from charcoal to coal in panel 6, and the table's Medium, are wrong. An earth clamp needs 3 to 10 days to cool, not 1–2: opened while warm, air reaches the charcoal and it reignites. See the charcoal guide. Charcoal kills indoors because it burns clean: it gives off carbon monoxide with no smoke to warn anyone. See the way a fire kills. The temperatures in the table are rough working ranges, not limits. Energy: fire and fuel · 2026-09-25 · Civilization101 Blueprint (AI-generated) · CC BY-SA 4.0
UseWhat it needs from the charcoalNotes
Smelting iron — bloomeryDense, strong pieces; no finesCharcoal is fuel and the reducing agent at once. Roughly equal weights of charcoal and ore, often more charcoal. See the bloomery
Smithing — forgeSmall, even pieces; softwood charcoal is fineBurns cleaner than coal, with no sulphur to spoil the steel. See the forge
Casting bronze and copperSteady heatCrucible furnaces run on charcoal under a bellows blast
CookingAnythingSmokeless and light to carry — which is why charcoal became a commercial cooking fuel, and why so many forests went to feed it
GunpowderFine, light charcoal — willow, alder, buckthornRoughly 15% of black powder by weight. A later-tier material with a severe explosion hazard
Soil — biocharFinesIncreases water and nutrient retention in poor soils, persists for centuries. Best 'charged' by soaking in urine or compost before use

Build the gear

Where to go next

This page covers what you are most likely to meet. It is not a field guide, and on identification that difference can kill you. These are the works that go further — chosen because they can be held offline.

Still to come

Illustrations carry a technique further than prose, but some things only move well. Recorded here rather than left implicit.

  • A photograph of a steel drum kiln
  • A drawing of a clamp in section showing the burn front moving down and out, with the vent rings — the process the smoke table describes
  • Coppice rotation as its own section: which species regrow, cutting season, rotation lengths and the yield per hectare per year
  • A comparison of smithing and smelting results with hardwood against softwood charcoal
